Seat Cushion Element

REMOVAL

NOTE: Disconnect the negative battery cable before removing the seat or attempting seat electrical repair.

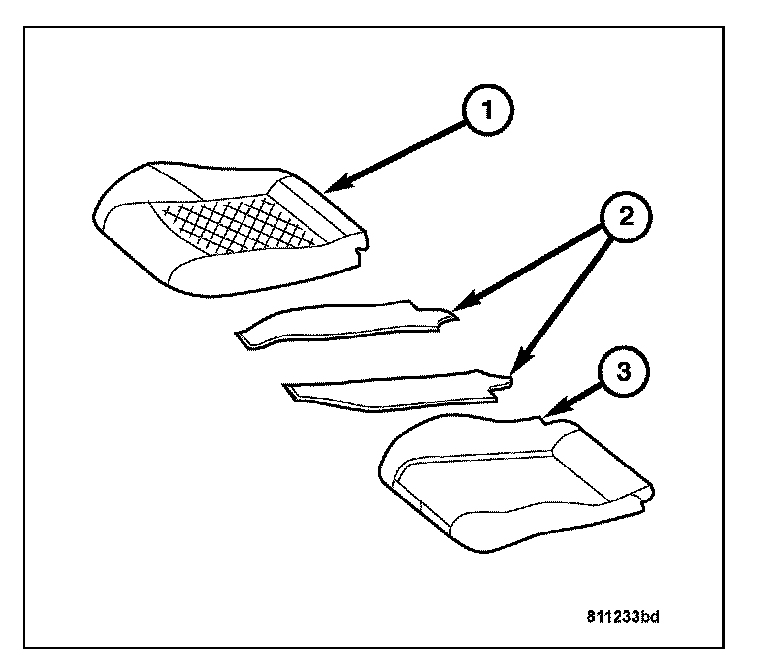

The heated seat cushion element (2) is part of the seat cushion assembly (3). To access the element, the seat must be removed and the seat cover (1) disassembled.
INSTALLATION

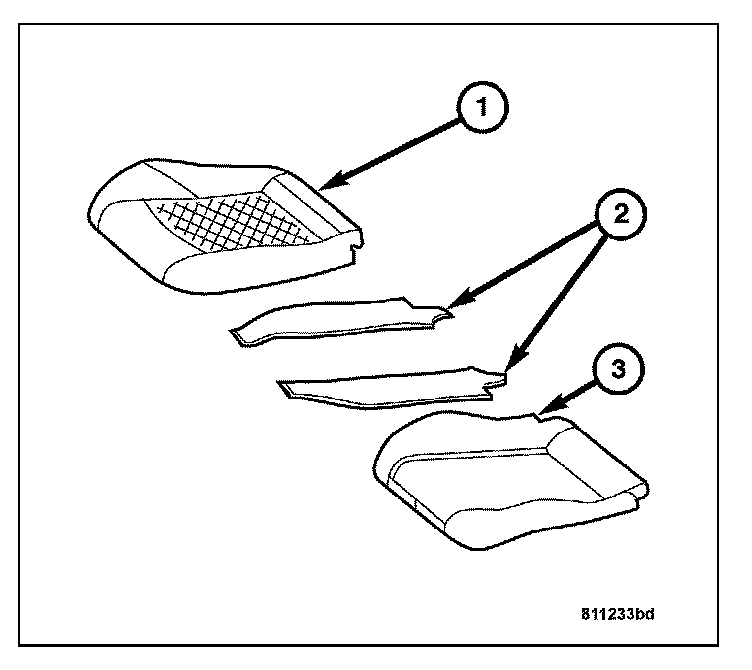

The heated seat cushion element (2) is an integral part of the seat cushion (3).
