Diesel Data
: Automotive Repair
Home
>>
Chrysler
>>
2005
>>
Crossfire SRT-6 V6-3.2L SC VIN N
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C100 - C310
>>
C100
C100

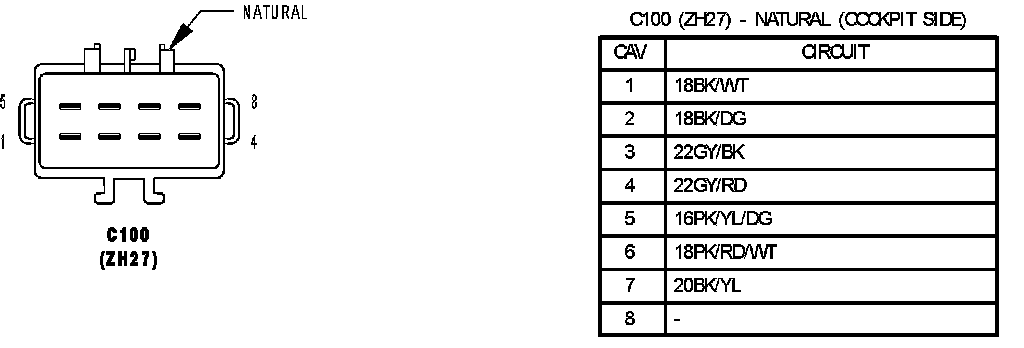

C100 (ZH27):

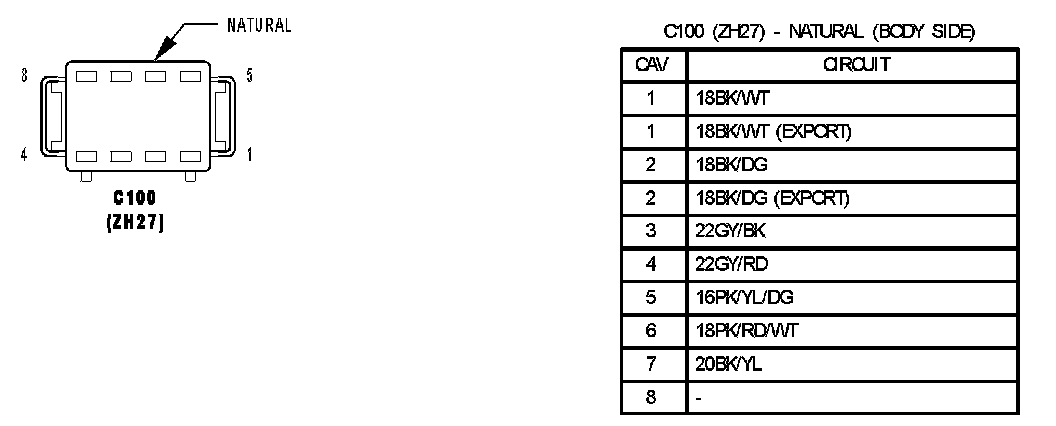

C100 (ZH27):

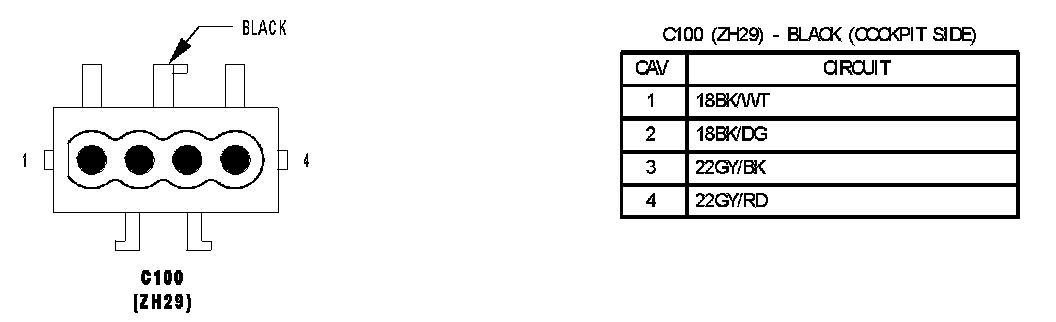

C100 (ZH29):

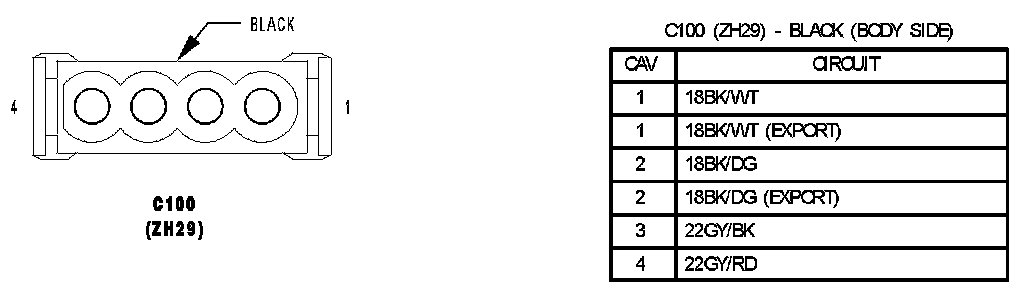

C100 (ZH29):
