Chrysler
>>
2005
>>
Crossfire SRT-6 V6-3.2L SC VIN N
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Convertible Top
>>
Convertible Top Switch
Convertible Top Switch

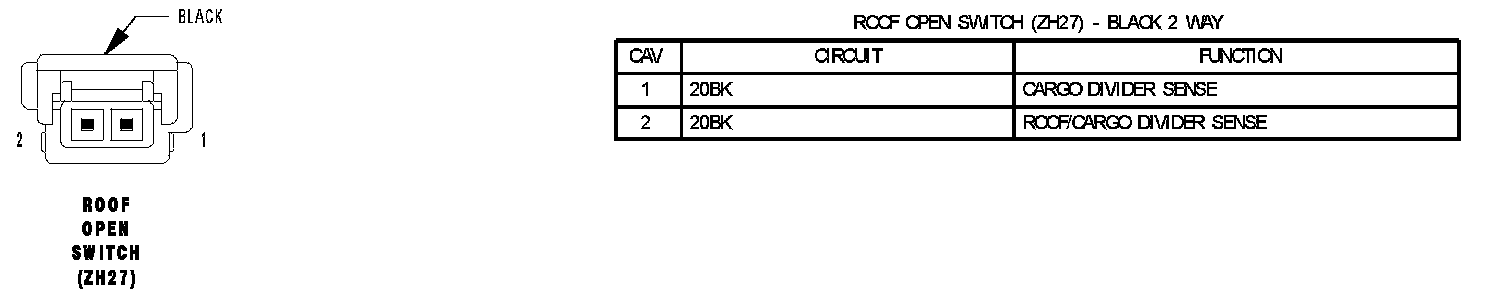

Roof Open Switch (ZH27):

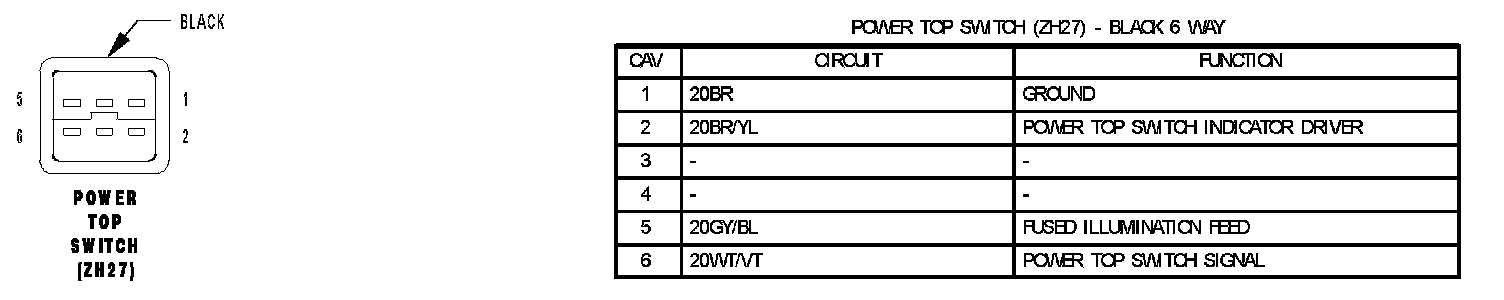

Power Top Switch (ZH27):
