Crossfire SRT-6 V6-3.2L SC VIN N
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Lighting and Horns
>>
Brake Lamp Relay
Brake Lamp Relay

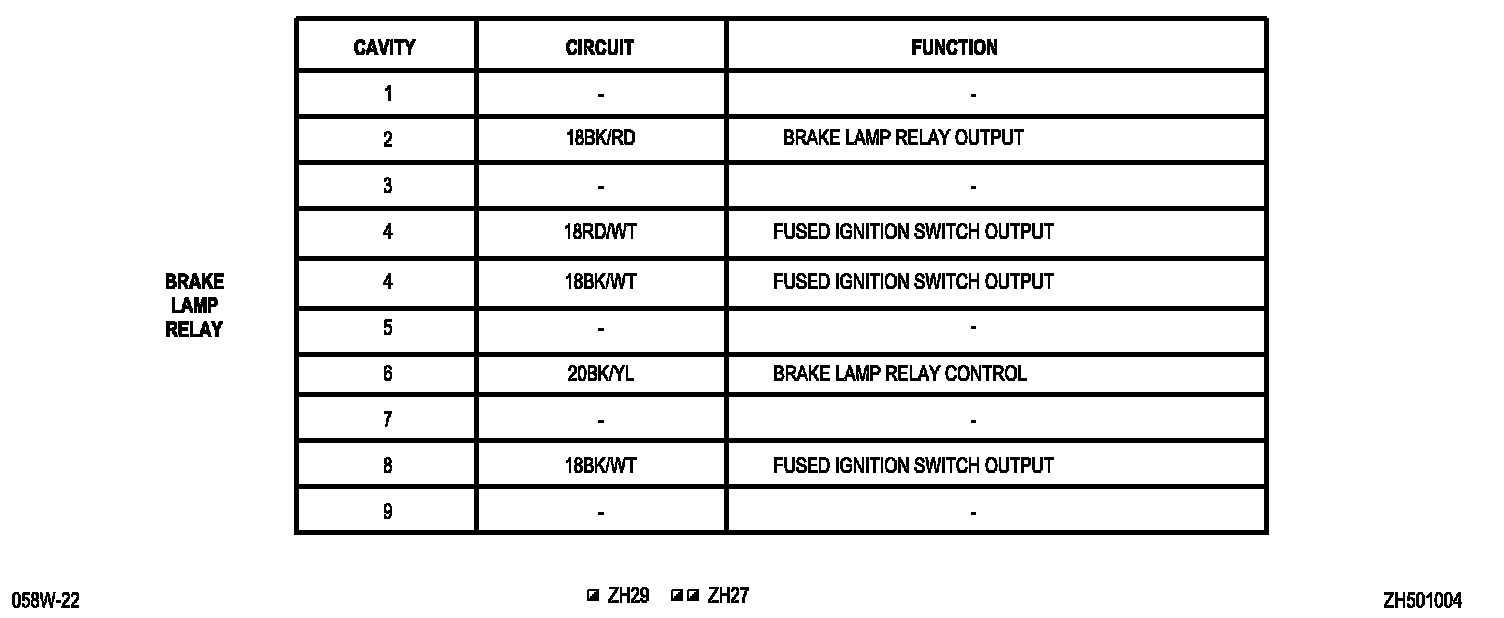

Brake Lamp Relay:
