Diesel Data
: Automotive Repair
Home
>>
Chrysler
>>
2005
>>
Crossfire SRT-6 V6-3.2L SC VIN N
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Radio/Stereo
Radio/Stereo

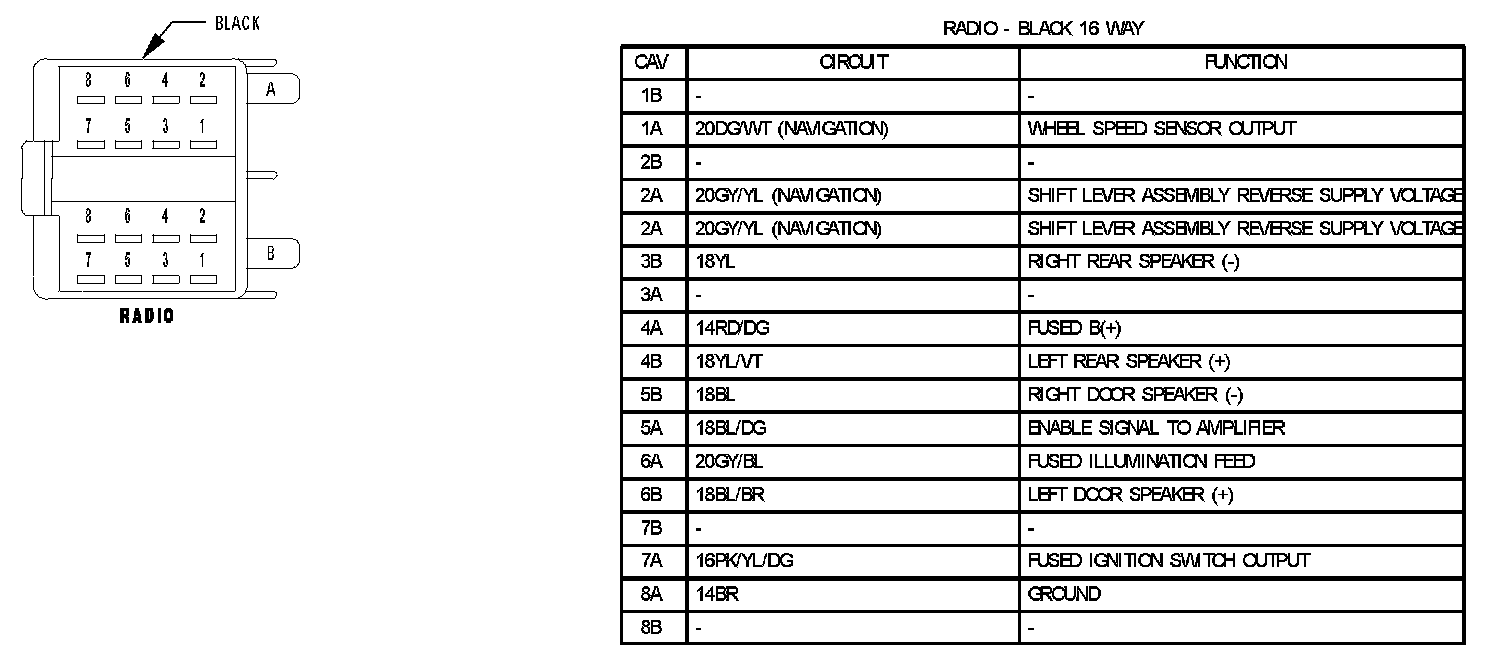

Radio:

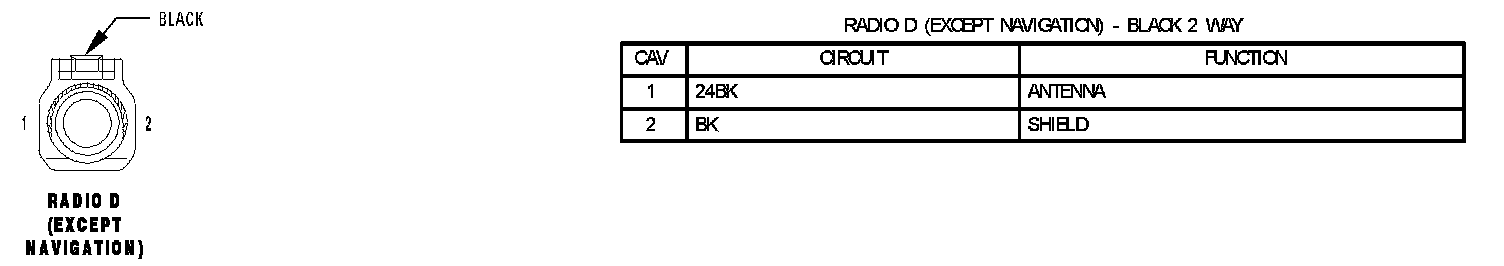

Radio D (Except Navigation):

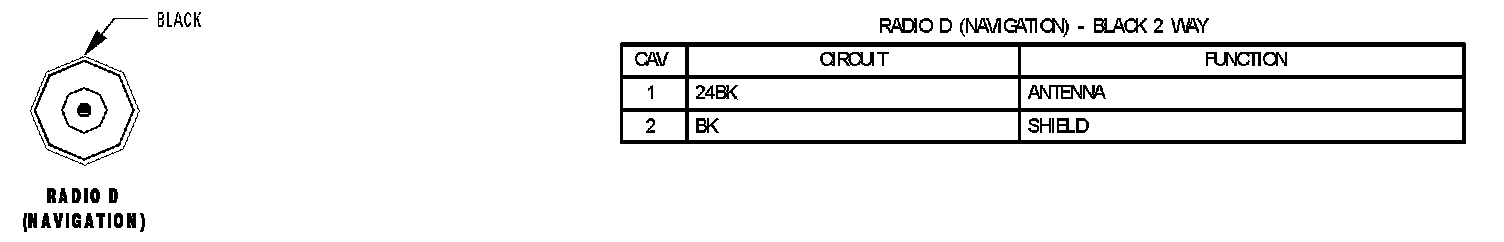

Radio D (Navigation):
