Group 8W-31 (Transmission Control System)
Group 8W-31 (Transmission Control System)

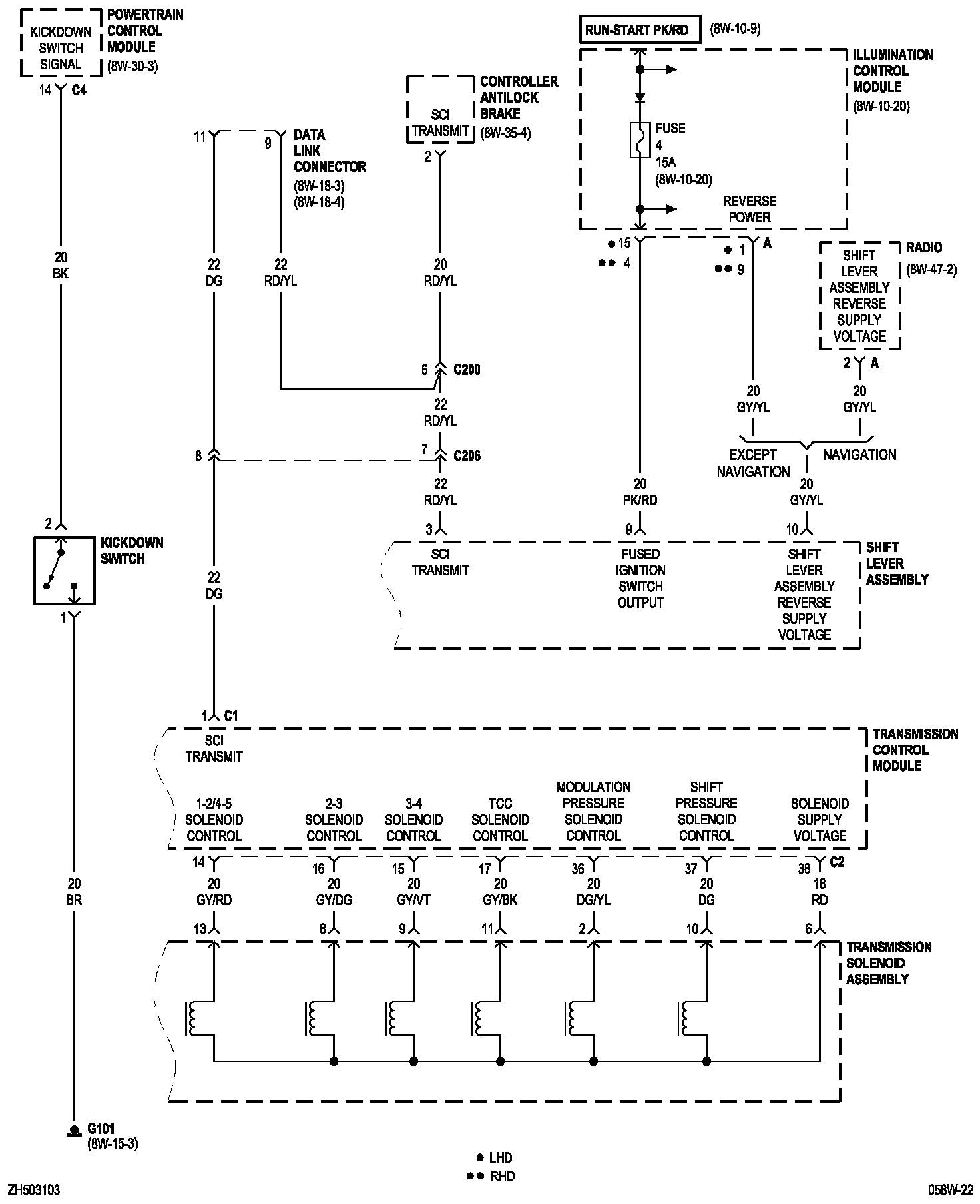

8w-31-2:
8w-31-3:
