Supercharger Idler

REMOVAL - SUPERCHARGER IDLER (SRT)

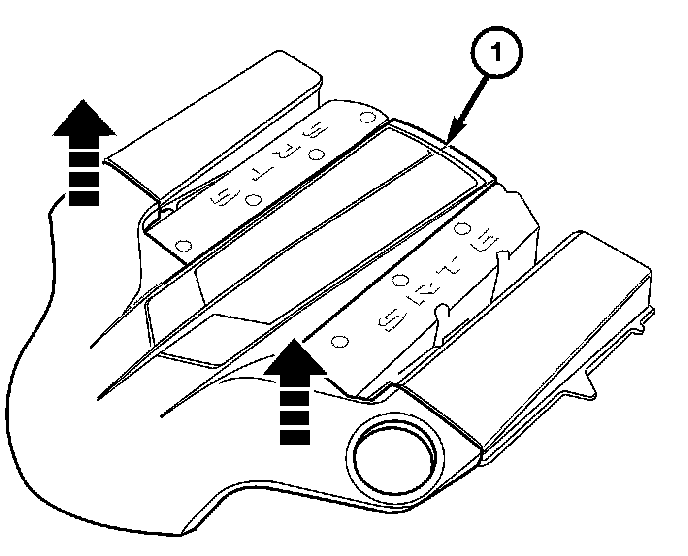

1. Remove the engine cover (1). Grasp both corners of the engine cover and pull up firmly.

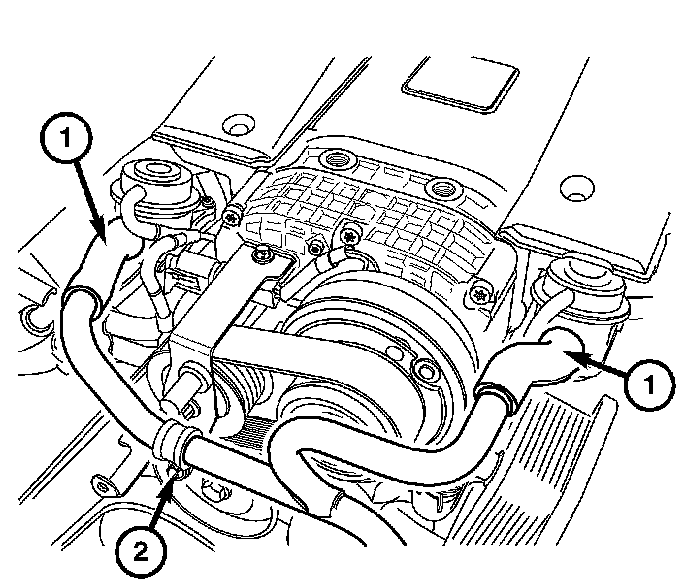

2. Remove the air tube assembly (1) by removing the retaining bolts (2).
3. Release the tension on the accessory drive belt.

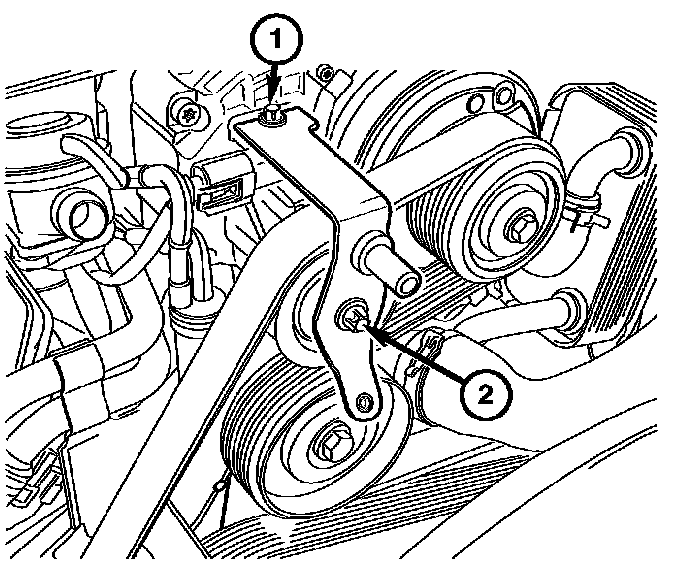

4. Remove the supercharger idler pulley retainer bolts (1) and (2) and the pulley assembly.

INSTALLATION - SUPERCHARGER IDLER (SRT)

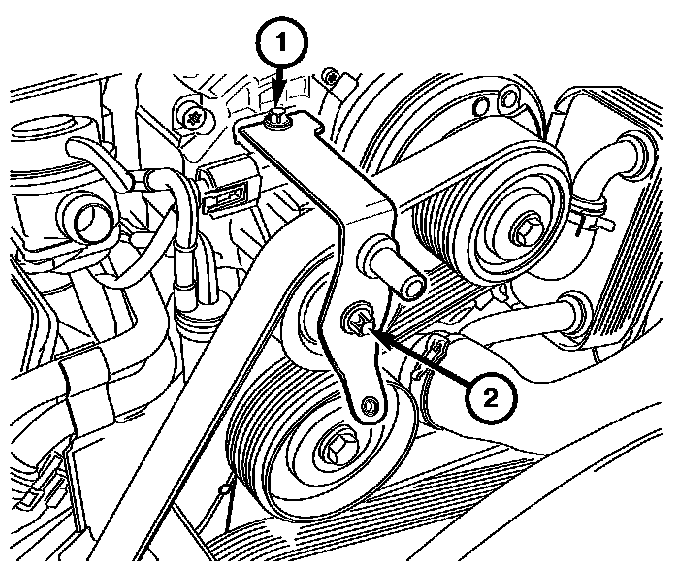

1. Install the supercharger idler pulley retainer bolts (1) and (2), and the pulley assembly. Tighten bolts to 20 Nm (15 ft. lbs.).
2. Install the accessory drive belt.

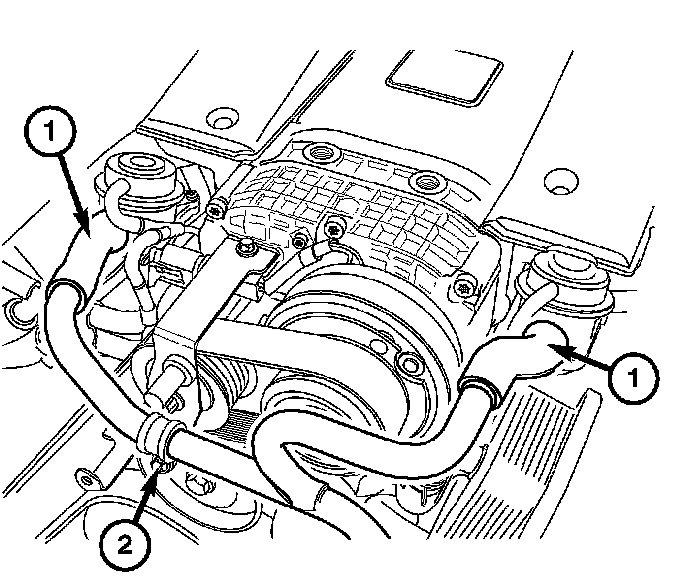

3. Install the air tube assembly (1) by installing the retaining bolts (2).

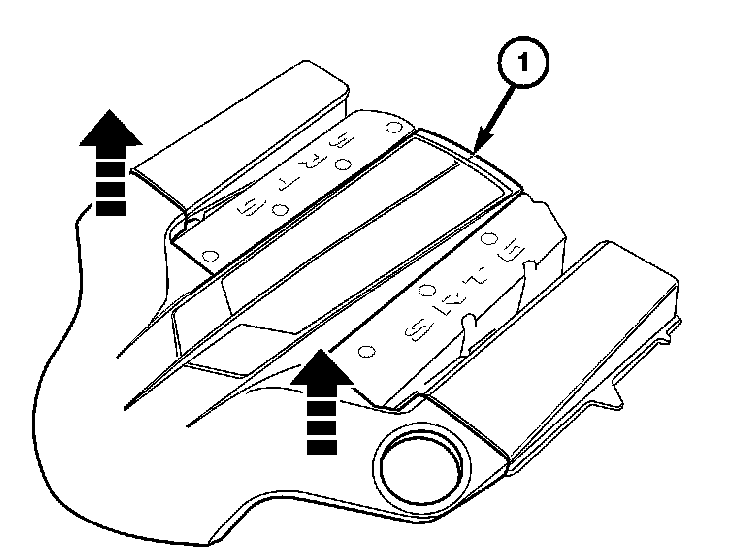

4. Install the engine cover (1). Align engine cover retaining clips to the rubber mounts, and push down firmly to connect engine cover to rubber mounts.

Note: To ease the installation of the engine cover, apply a small amount of lubricant to the engine cover rubber mounts.
