Headlamp Bulb: Testing and Inspection

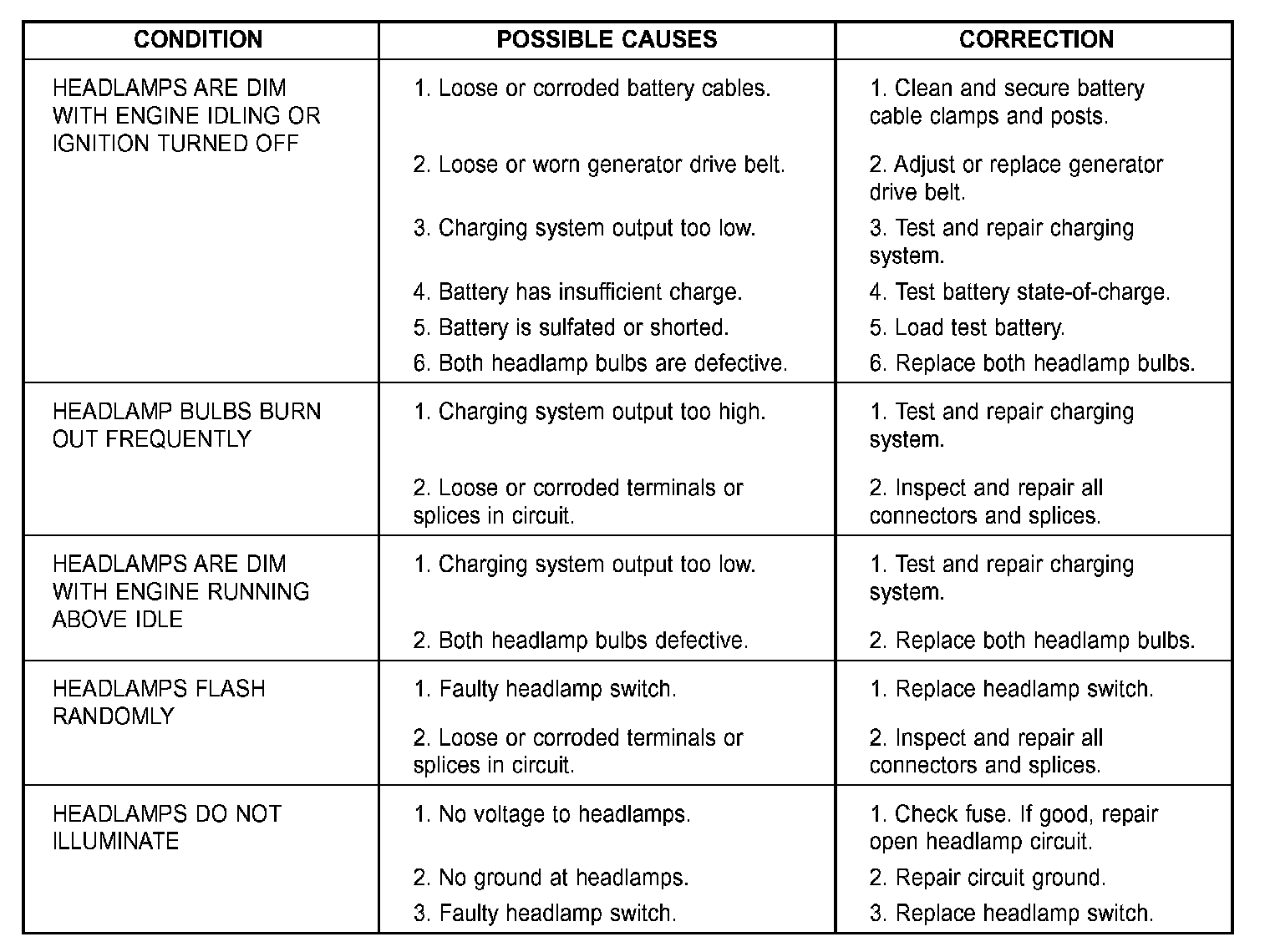

Headlamp Diagnosis:

If a vehicle experiences problems with the headlamp system, verify the following are in proper operating condition:
- Battery connections
- Charging system
- Headlamp bulbs
- High beam dimmer switch
- Headlamp switch
- Wiring harness connectors
