Supercharger Coolant Pump: Service and Repair

CHARGE AIR COOLER CIRCULATION PUMP
REMOVAL





1. Remove the right front inner fender lining in order to gain access to the charge air cooler circulation pump.

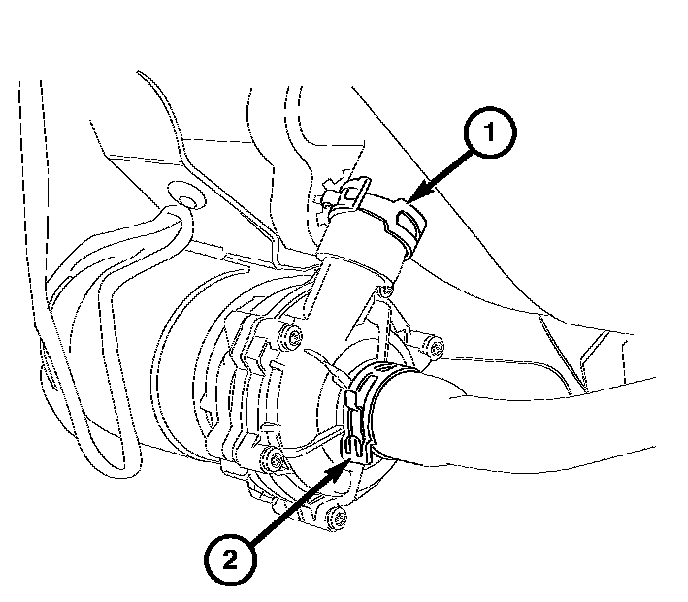

2. Remove the charge air cooler circulation pump inlet hose (2).
3. Remove the charge air cooler circulation pump outlet hose (1).

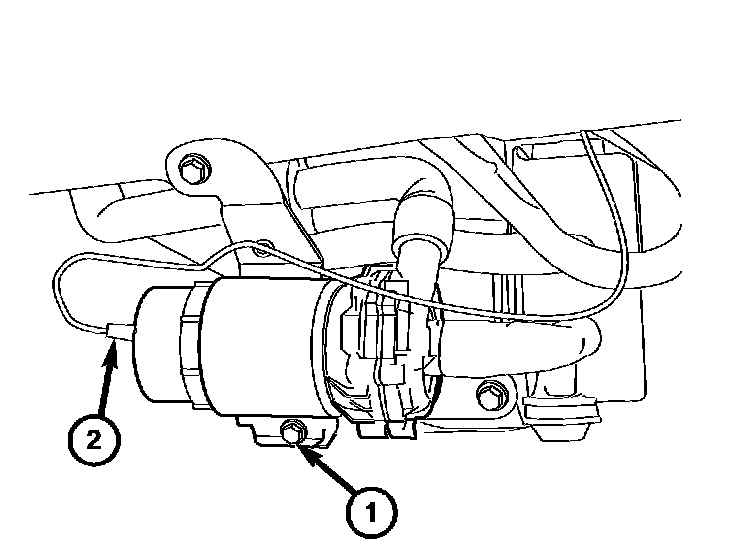

4. Disconnect the charge air cooler circulation pump harness connector (2).
5. Remove the charge air cooler circulation pump mounting bolt (1).
6. Remove the charge air cooler circulation pump from the mounting bracket.

INSTALLATION





1. Install the charge air cooler circulation pump to the mounting bracket.

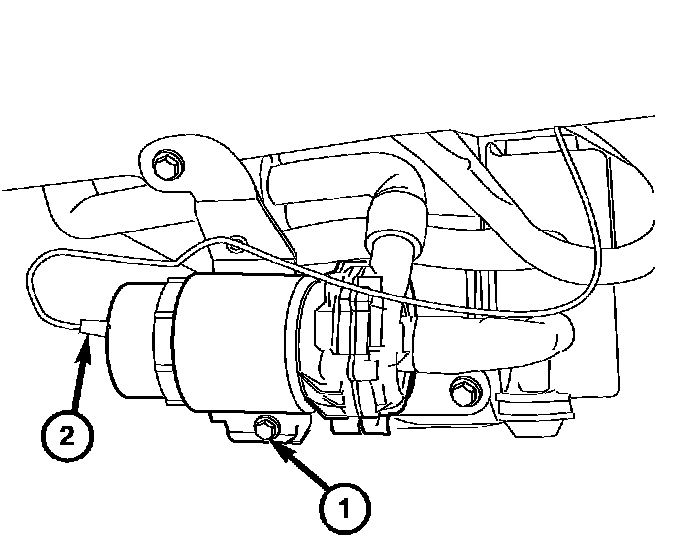

2. Install the charge air cooler circulation pump mounting bolt (1). Tighten the mounting bolt to 20 Nm (15 ft. lbs.).
3. Reconnect the charge air cooler circulation pump harness connector (2).

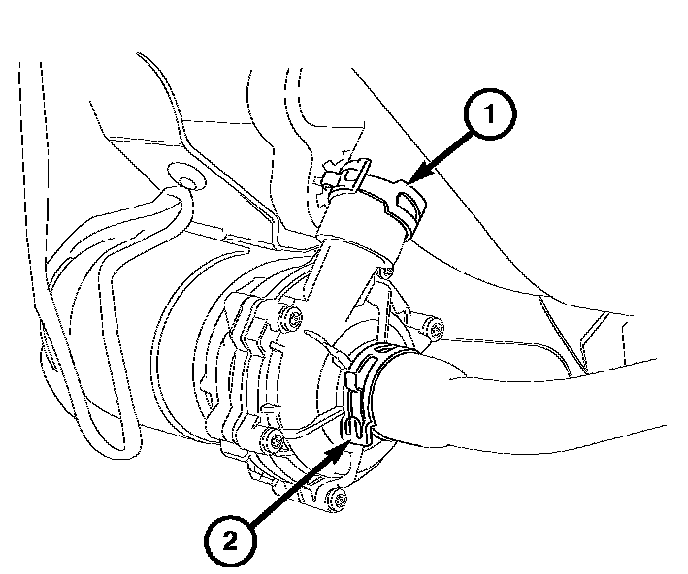

4. Reconnect the charge air cooler circulation pump inlet hose (2).
5. Reconnect the charge air cooler circulation pump outlet hose (1).
6. Refill the cooling system.
7. Start the engine and check for coolant leaks.
8. Install the right side inner fender lining.
9. Recheck the coolant level.
