Air Bag: Diagrams

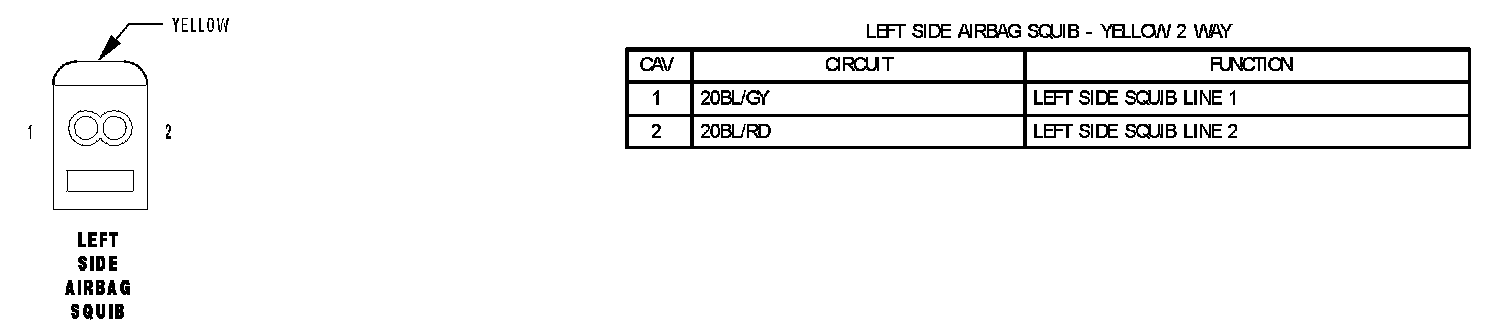

Left Side Airbag Squib:

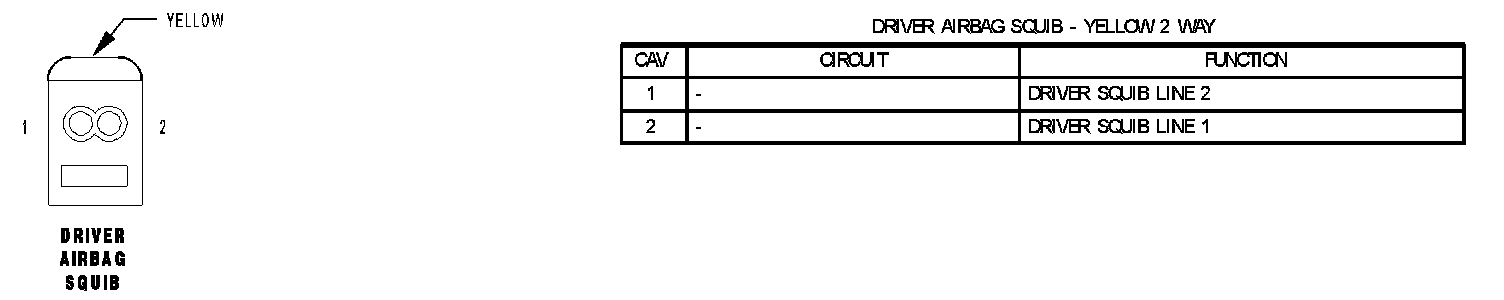

Driver Airbag Squib:

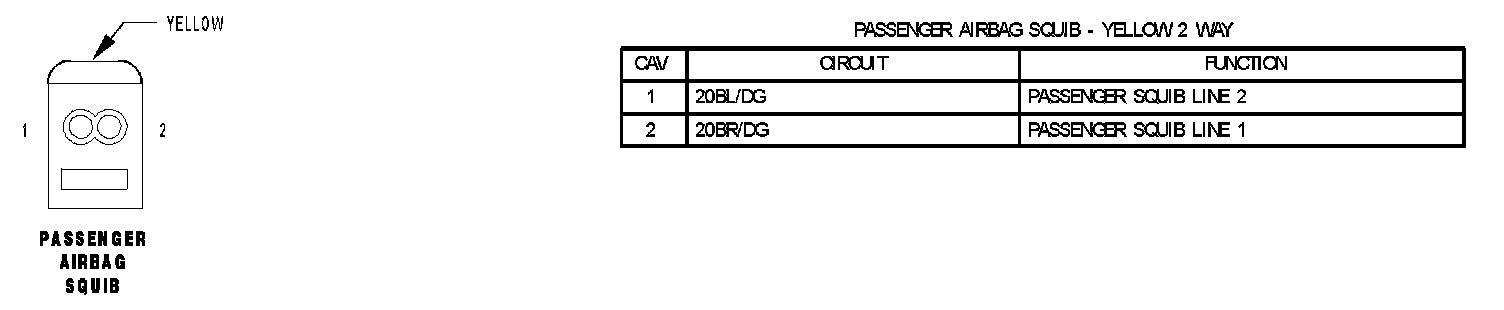

Passenger Airbag Squib:

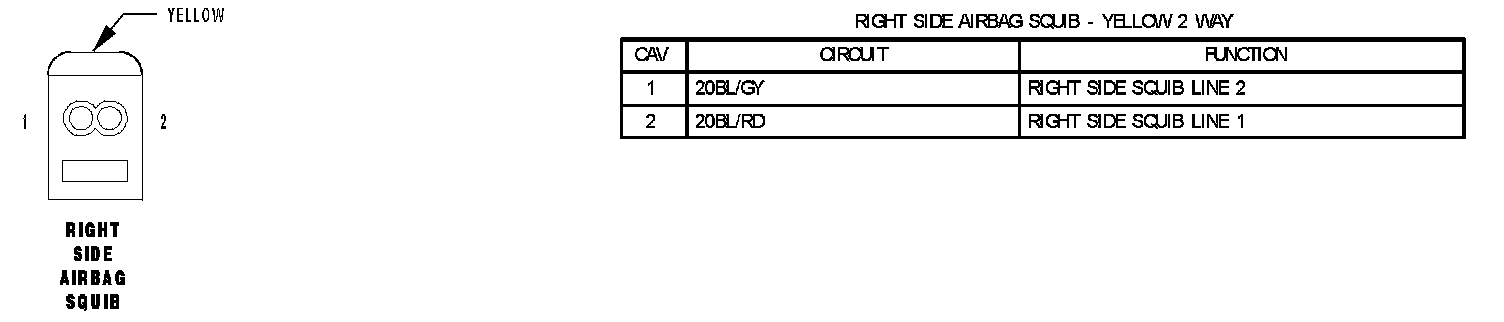

Right Side Airbag Squib:
