Clutch Slave Cylinder: Service and Repair

RELEASE BEARING/SLAVE CYLINDER

REMOVAL

WARNING: RISK OF POISONING DUE TO SWALLOWING BRAKE FLUID. RISK OF INJURY DUE TO BRAKE FLUID COMING INTO CONTACT WITH THE SKIN AND EYES.

Note: Only pour brake fluid into suitable, appropriately marked containers. Wear protective clothing and safety glasses when handling brake fluid.





1. Remove the transmission.

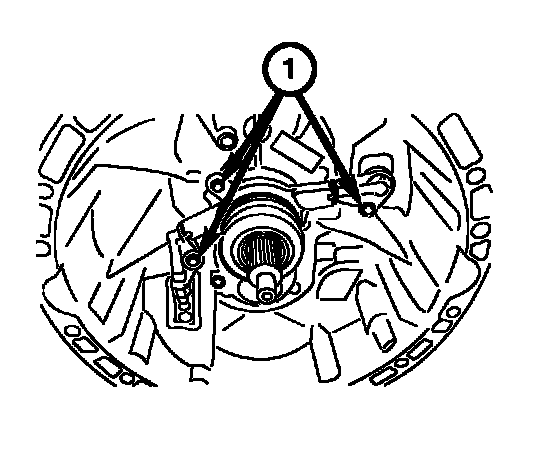

2. Remove the clutch slave cylinder/release bearing bolts (1).
3. Remove the clutch slave cylinder/release bearing and plastic washer from transmission bell housing.
4. Inspect the clutch slave cylinder/release bearing for signs of leakage and wear.
5. Replace all worn parts as necessary.

INSTALLATION





1. Position the slave cylinder/release bearing in the bell housing.

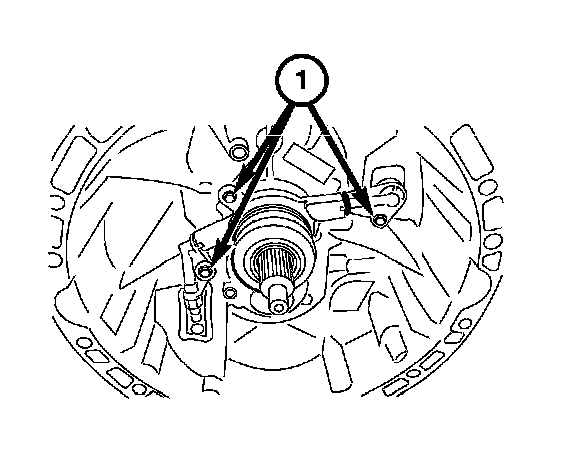

2. Install the slave cylinder/release bearing bolts (1). Tighten the bolts to 10 Nm (89 inch lbs.).
3. Install the transmission.
4. Bleed the hydraulic clutch system.
