Clutch Pedal Assembly: Service and Repair

CLUTCH PEDAL REMOVAL
1. Remove the driver side lower instrument panel.

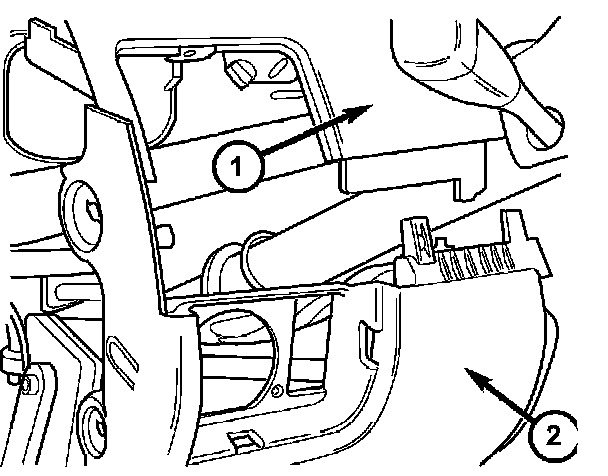

2. Remove the driver side upper instrument panel (1).

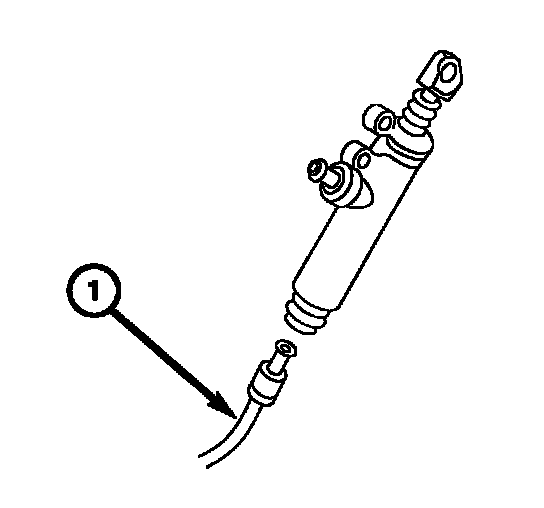

3. Disconnect the clutch master cylinder fluid pressure line (1).





4. Disconnect the clutch pedal position switch.

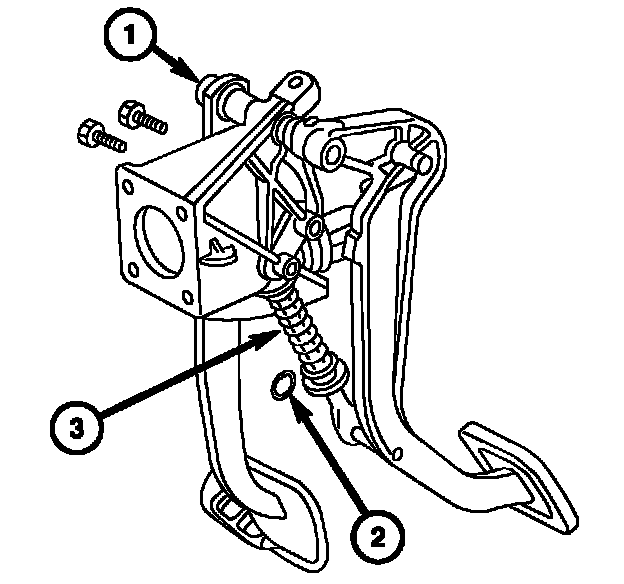

5. Remove the circlip (2) and the return spring (3).
6. Remove the clutch pedal from the pivot (1).

INSTALLATION





1. Install the clutch pedal on the bracket the pivot (1).

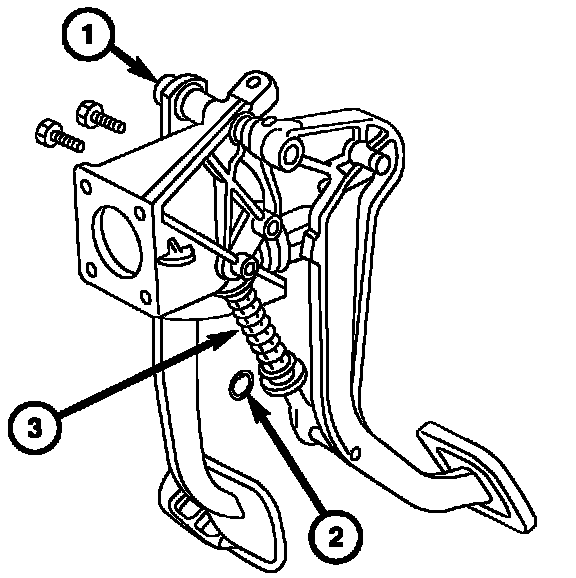

2. Install the return spring (3) and the circlip (2).

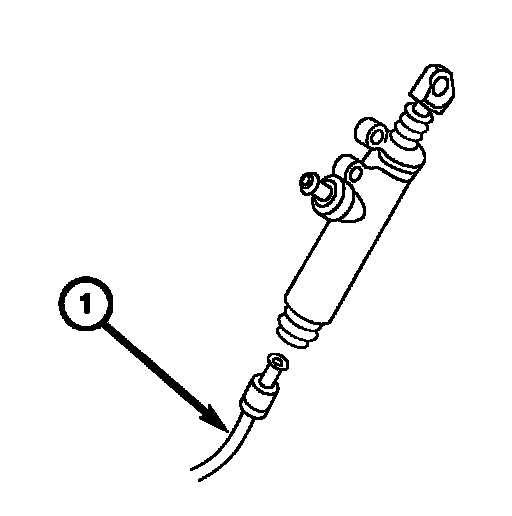

3. Install the clutch master cylinder fluid pressure line (1).

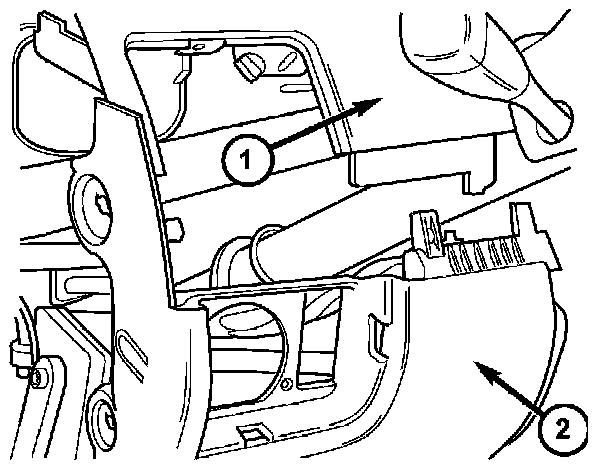

4. Install the driver side upper instrument panel (1).
5. Install the driver side lower instrument panel.
