Seat Belt Tensioner: Diagrams

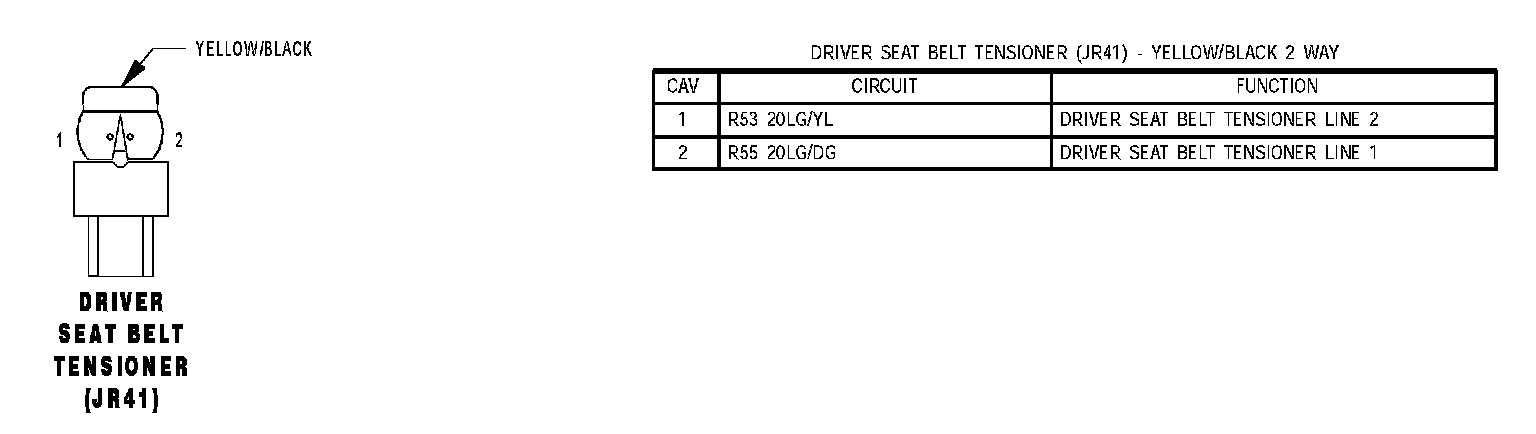

Driver Seat Belt Tensioner (JR41):

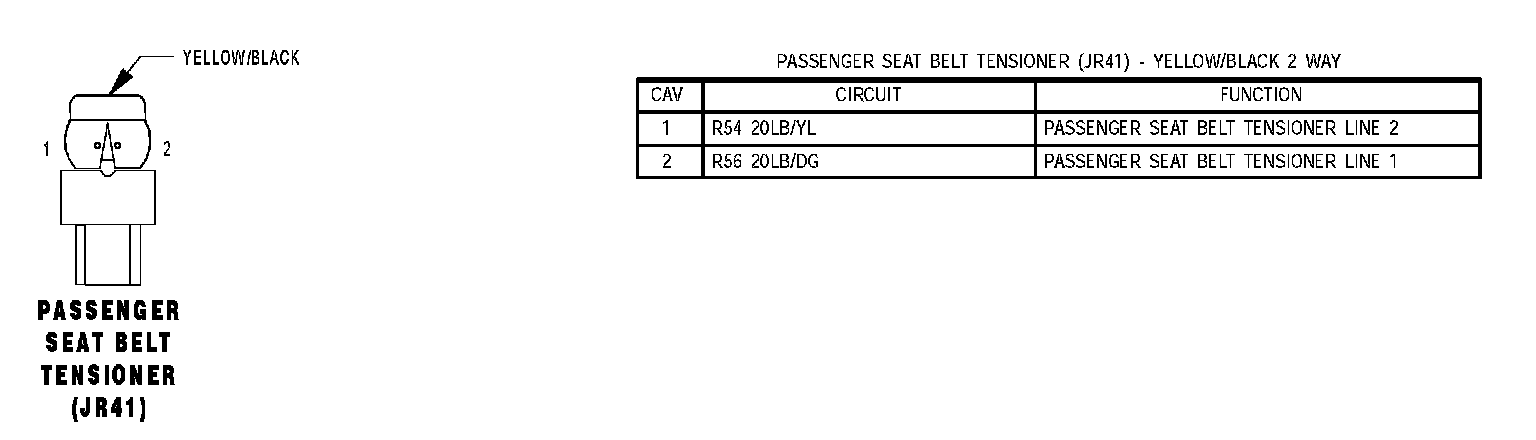

Passenger Seat Belt Tensioner (JR41):
