Antenna, Radio: Service and Repair

ANTENNA - SATELLITE RADIO

NOTE: A battery reconnect procedure must be performed anytime the battery has been disconnected.

REMOVAL
1. Disconnect and isolate the battery negative cable.
2. Lower the rear portion of the headliner as necessary to access underside of antenna
3. Disconnect the wire harness connectors from the antenna.
4. Remove the mounting fastener.

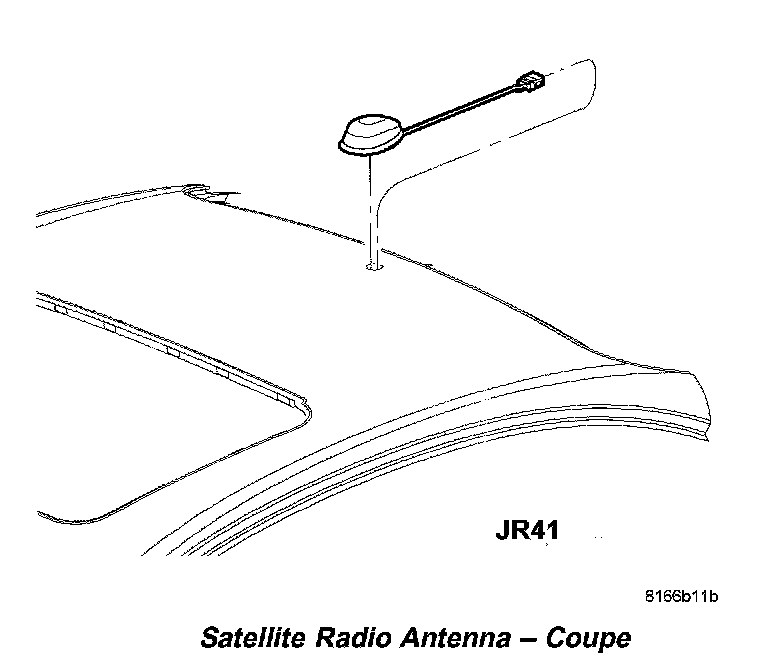

Satellite Radio Antenna - Coupe:

5. From inside the vehicle, and using a flat bladed tool, depress one of the retaining tabs on the antenna. Push up the one side of the antenna connector through the roof panel. Depress the other side of the connector and remove the antenna.

INSTALLATION

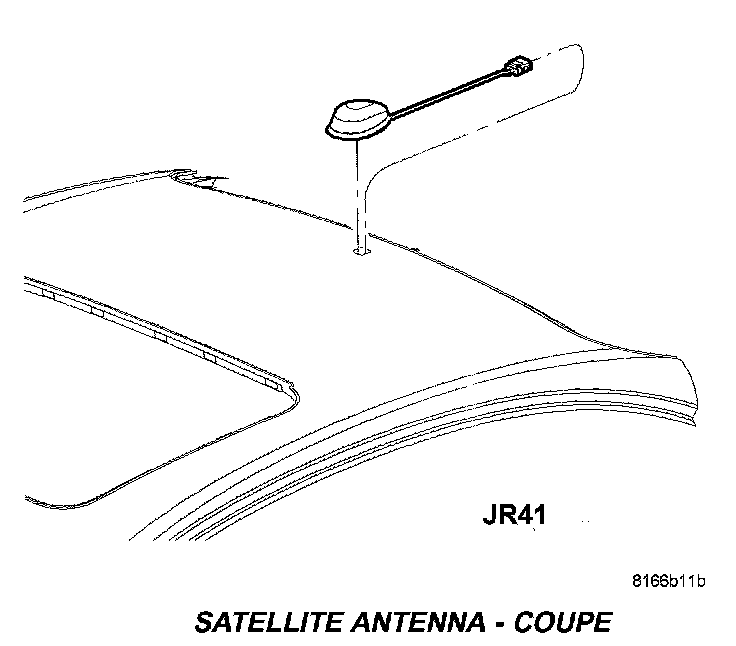

Satellite Antenna - Coupe:

1. Insert wire harness through hole in roof panel. Press antenna into position until both retainers engage into position.
2. Install and tighten mounting fastener.
3. Connect wire harness connectors to antenna.
4. Install headliner.
5. Connect battery negative cable.
