Removal
REMOVAL
1. Remove headliner.

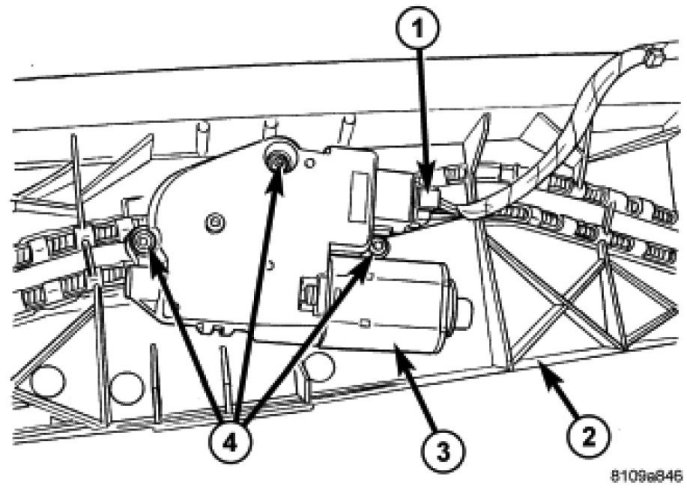

2. Disconnect the electrical connector (1).
3. Remove three motor assembly attaching screws (4) from bottom side of motor assembly (3) and remove motor assembly from the motor bracket.
REMOVAL
1. Remove headliner.
2. Disconnect the electrical connector (1).
3. Remove three motor assembly attaching screws (4) from bottom side of motor assembly (3) and remove motor assembly from the motor bracket.
