Airbag-Passenger Squib 2

Component ID: 8
Component : AIRBAG-PASSENGER SQUIB 2

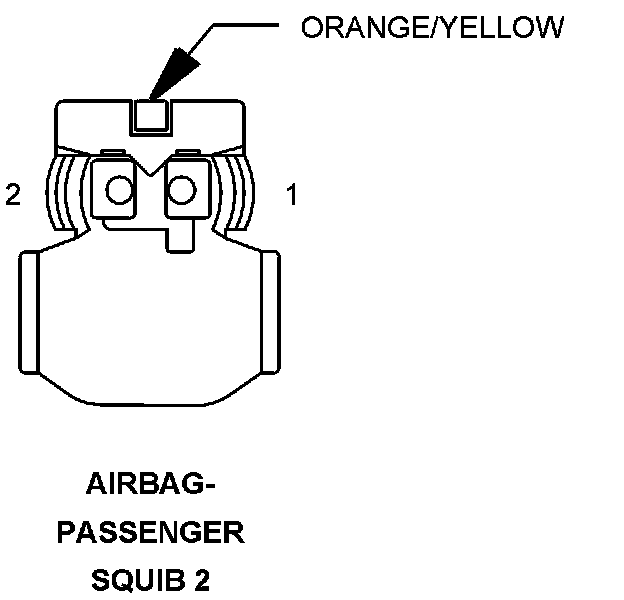

Connector:
Name : AIRBAG-PASSENGER SQUIB 2
Color : ORANGE/YELLOW
# of pins : 2

Pin Description Circuit
1 PASSENGER SQUIB 2 LINE 2 R62 18LB/VT
2 PASSENGER SQUIB 2 LINE 1 R64 18LB/WT

Component Location - 37

Component Location - 39

Component Location - 42
