Installation
INSTALLATION

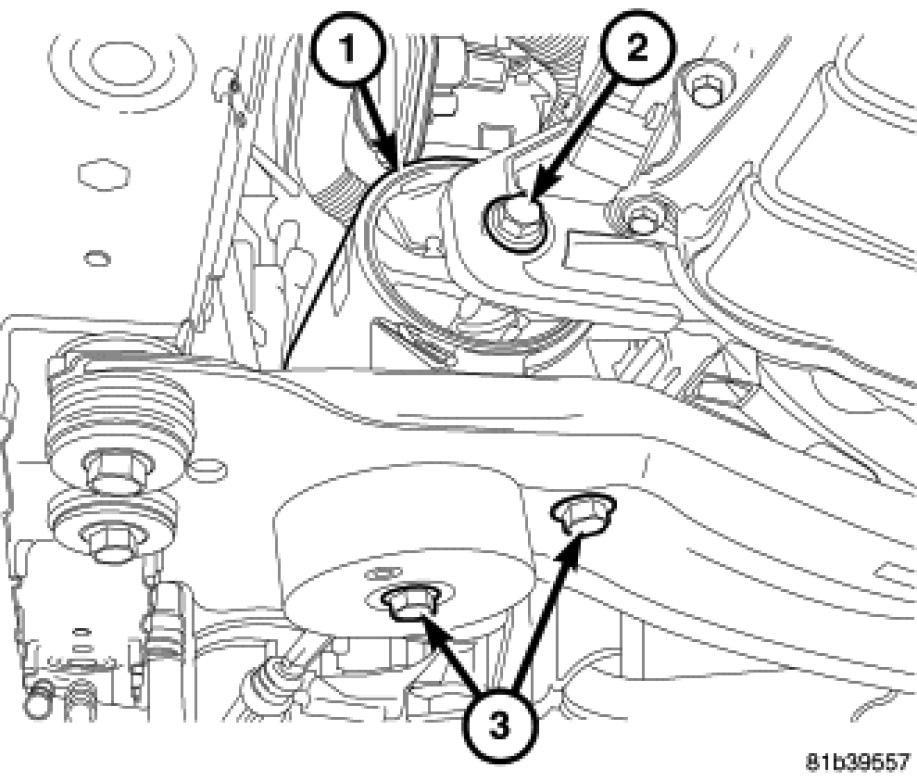

1. Position mount (1) and
2. Install retaining bolts (3) and torque to 47 Nm (35 ft. lbs.).
3. Install mount through bolt (2) and torque to 47 Nm (35 ft. lbs.).
4. Install lower silencer (1).
5. Lower vehicle.
INSTALLATION
1. Position mount (1) and
2. Install retaining bolts (3) and torque to 47 Nm (35 ft. lbs.).
3. Install mount through bolt (2) and torque to 47 Nm (35 ft. lbs.).
4. Install lower silencer (1).
5. Lower vehicle.
