Removal

REMOVAL

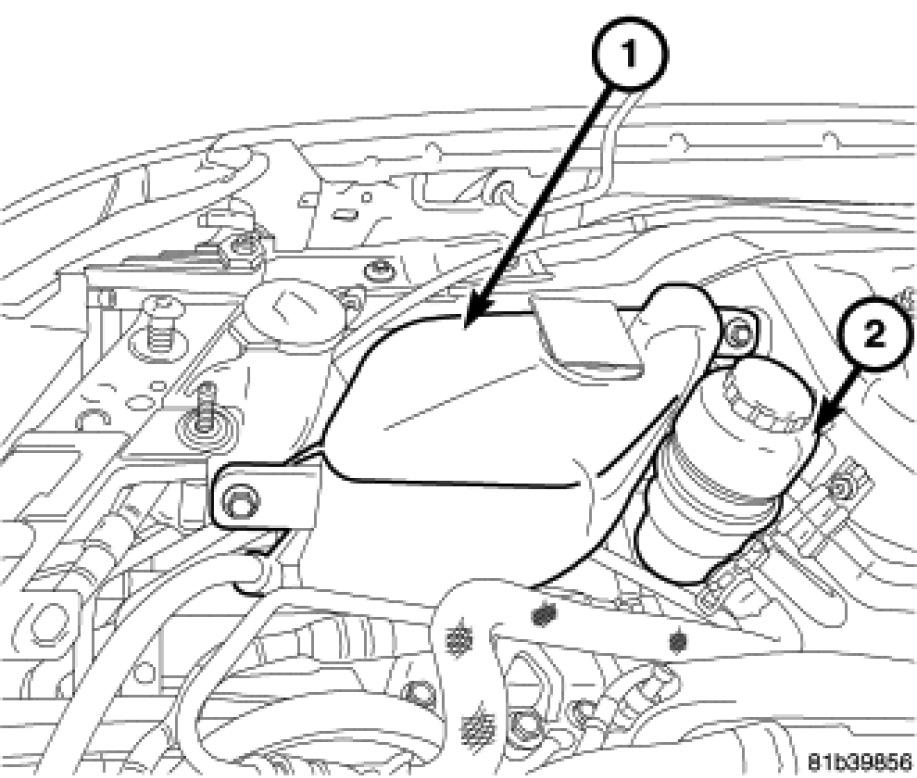

1. Remove coolant reservoir (1) and set aside.




2. Remove power steering line support bracket (3) from engine mount.
3. Support transaxle with a block of wood and a suitable jack.

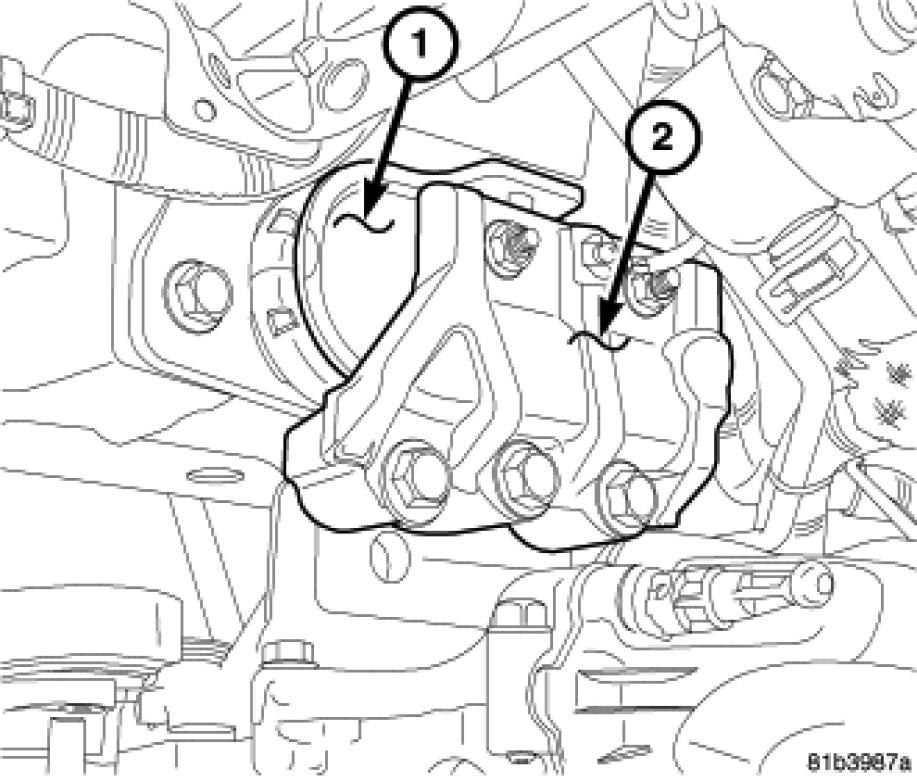

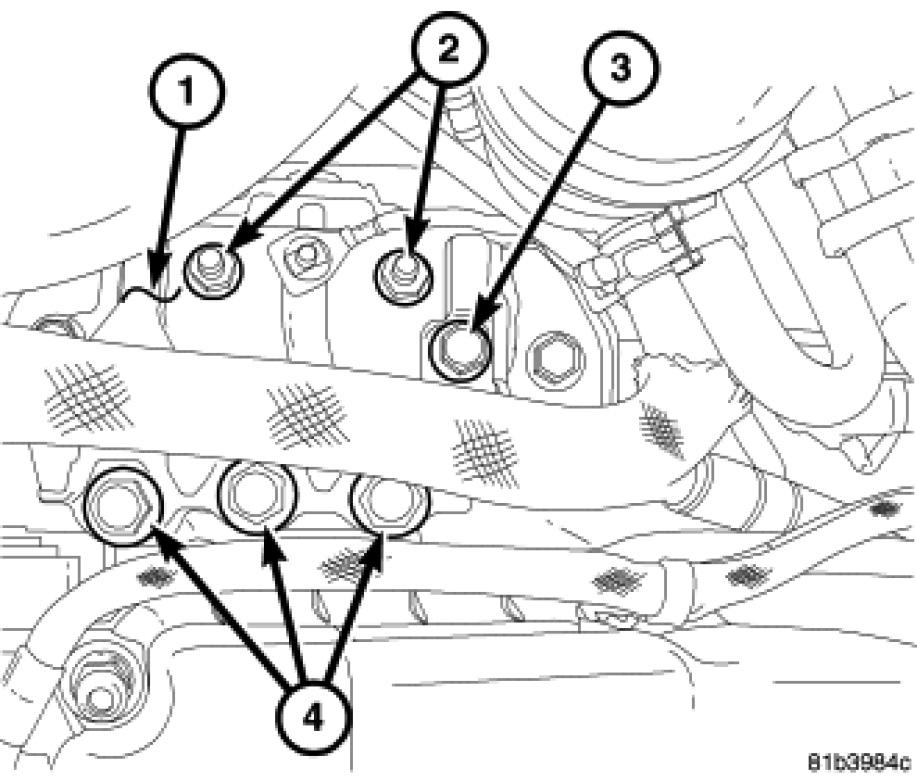

4. Remove engine mount bracket (2) retaining bolts.
5. Remove engine mount isolator bolts.
6. Remove engine mount isolator (1).
