Satellite Antenna - Installation

INSTALLATION






NOTE: A battery reconnect procedure must be performed anytime the battery has been disconnected. Battery Reconnection .

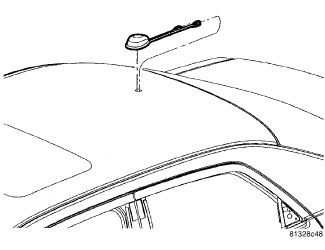

1. Insert the antenna harness through the hole in the roof panel. Press the antenna into position until both the retainers engage into position.
2. Install and tighten the mounting fastener. Tighten to 9 Nm (80 in. lbs.).

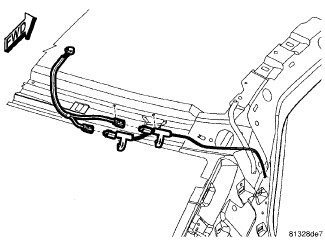

3. Connect the antenna harness to the connectors on the antenna.
4. Install the headliner Headliner - Installation.
5. Connect the negative battery cable.
