Air Door Actuator / Motor, HVAC
>>
Recirculation Door Actuator (HVAC) 6 Way
Recirculation Door Actuator (HVAC) 6 Way

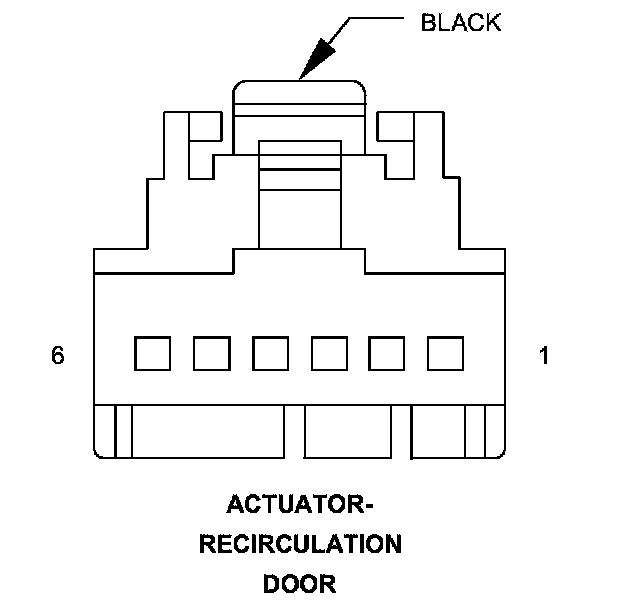

Connector - (HVAC) 6 WAY

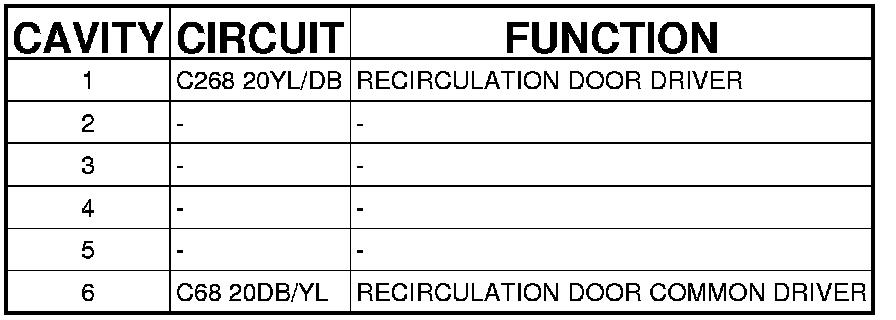

ACTUATOR-RECIRCULATION DOOR - (HVAC) 6 WAY
