C300 (Body Side) 24 Way
C300 (Body Side) 24 Way

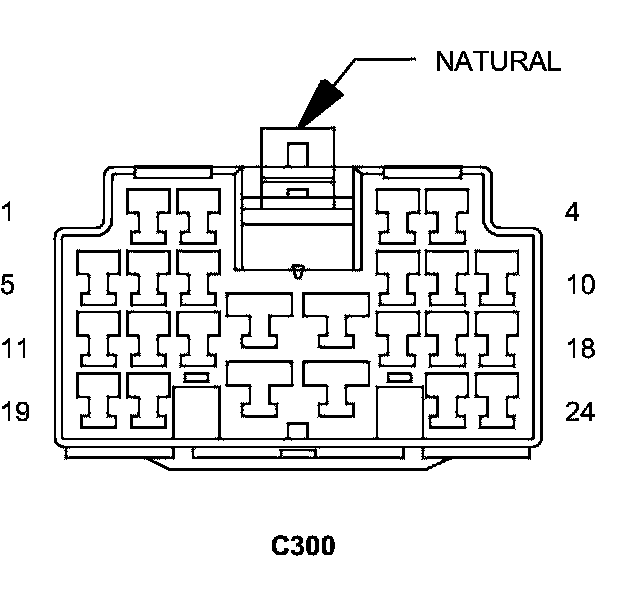

Connector - (BODY SIDE) 24 WAY

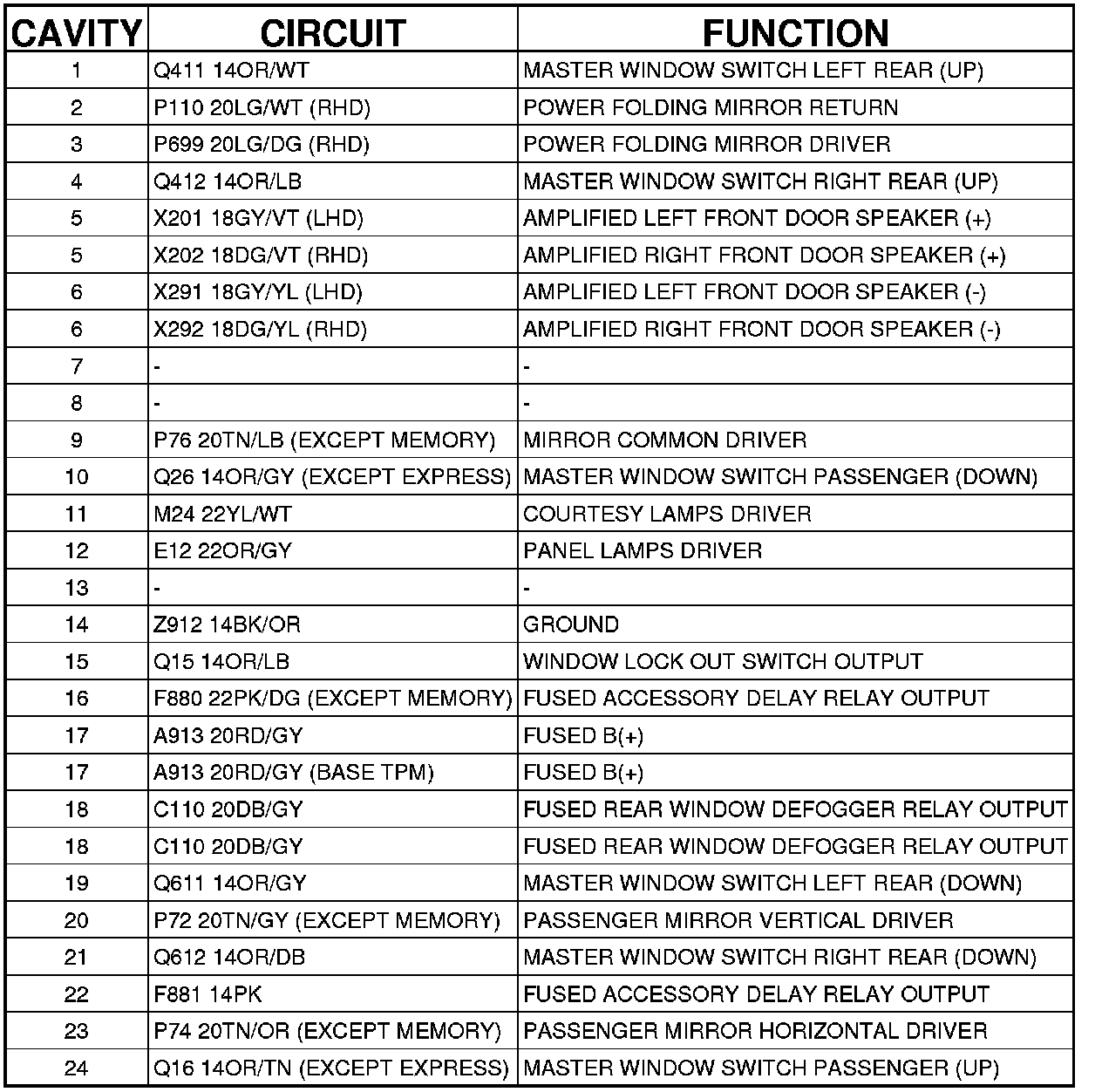

C300 - (BODY SIDE) 24 WAY
