C300 (Front Door Side) 24 Way
C300 (Front Door Side) 24 Way

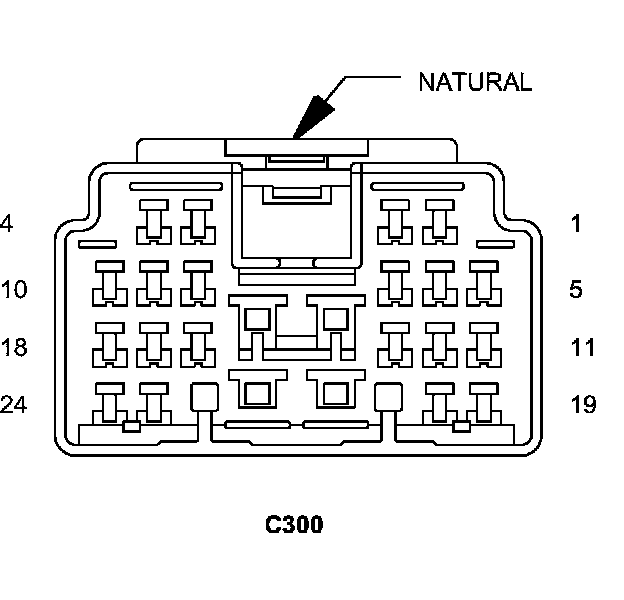

Connector - (FRONT DOOR SIDE) 24 WAY

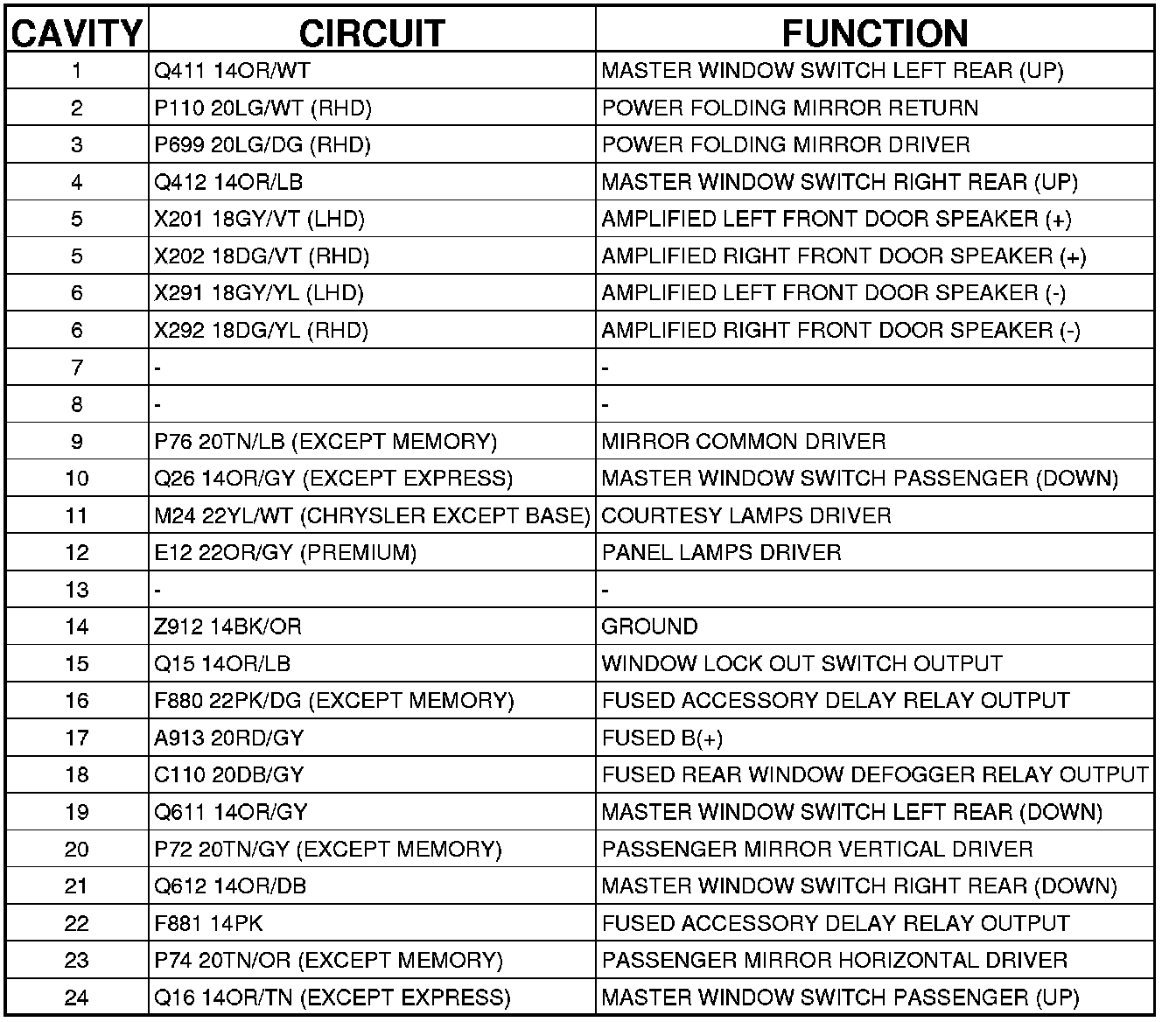

C300 - (FRONT DOOR SIDE) 24 WAY
