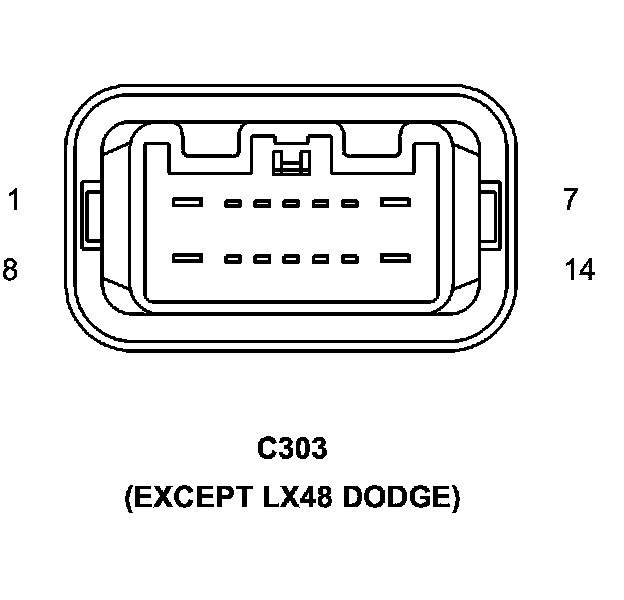

C303 (Except LX48 Dodge) (Rear Door Side) 14 Way






Connector (EXCEPT LX48 DODGE) - (REAR DOOR SIDE) 14 WAY

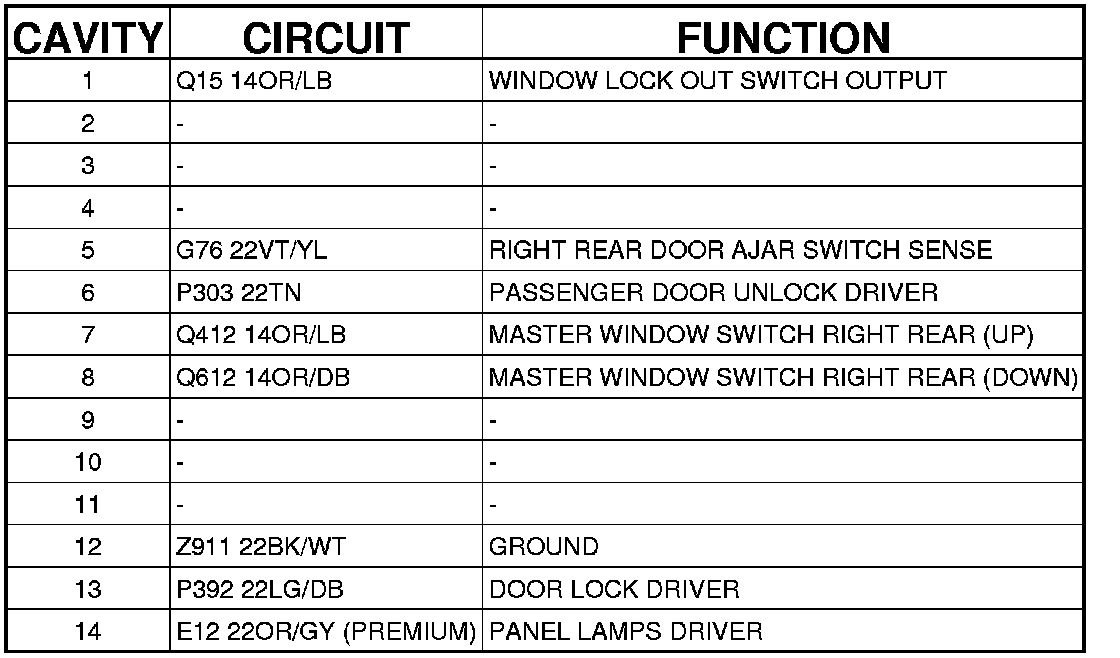

C303 (EXCEPT LX48 DODGE) - (REAR DOOR SIDE) 14 WAY
