C313 (Police) (Front Seat Side) 8 Way
C313 (Police) (Front Seat Side) 8 Way

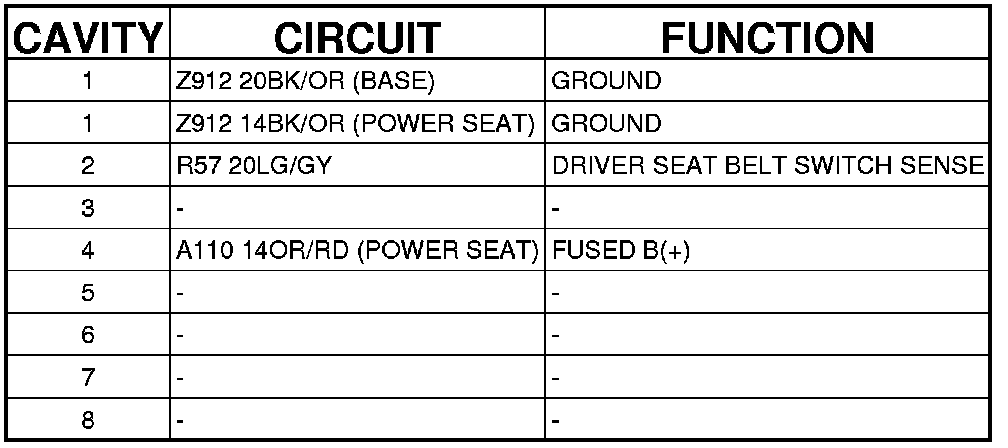

Connector (POLICE) - (FRONT SEAT SIDE) 8 WAY

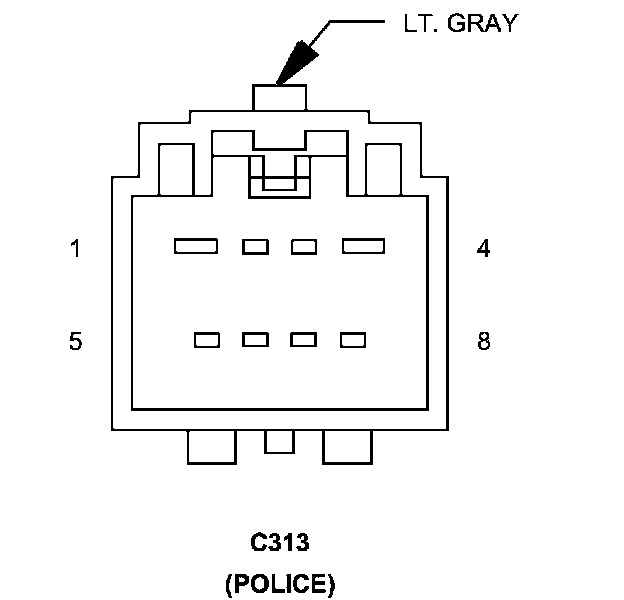

C313 (POLICE) - (FRONT SEAT SIDE) 8 WAY
