C315 (Premium) (Front Seat Side) 6 Way
C315 (Premium) (Front Seat Side) 6 Way

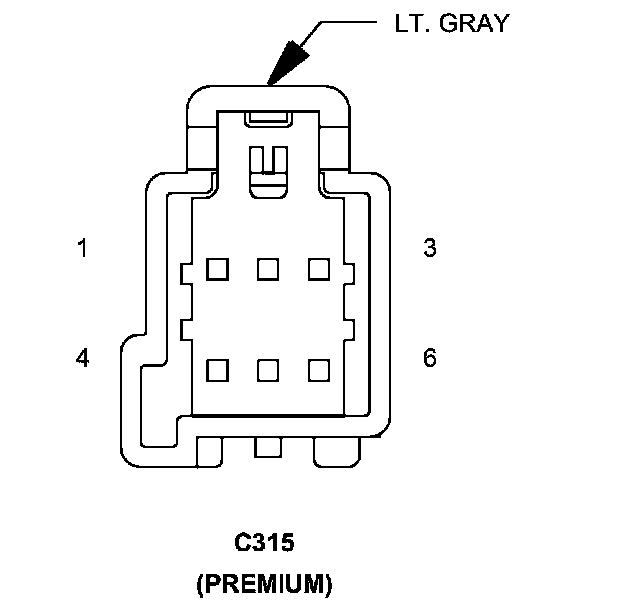

Connector (PREMIUM) - (FRONT SEAT SIDE) 6 WAY

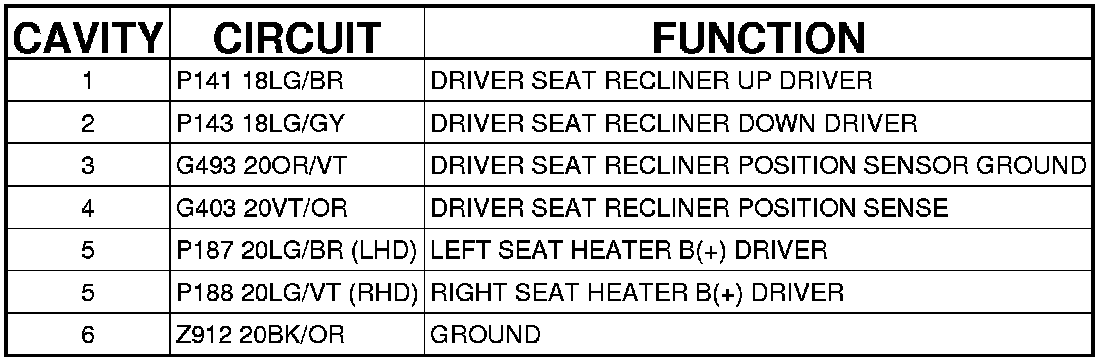

C315 (PREMIUM) - (FRONT SEAT SIDE) 6 WAY
