C316 (Front Seat Back Jumper Side) 4 Way
C316 (Front Seat Back Jumper Side) 4 Way

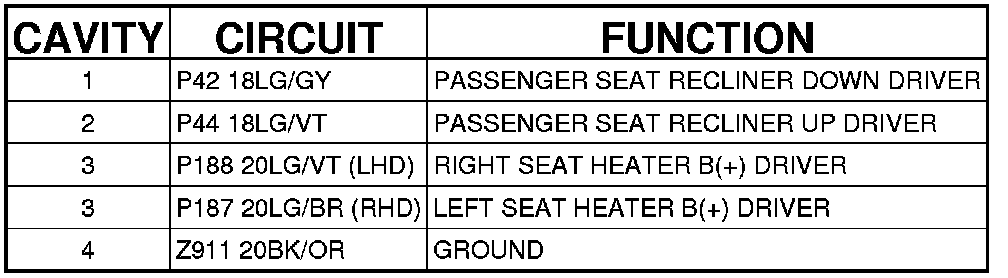

Connector - (FRONT
SEAT BACK
JUMPER SIDE) 4 WAY

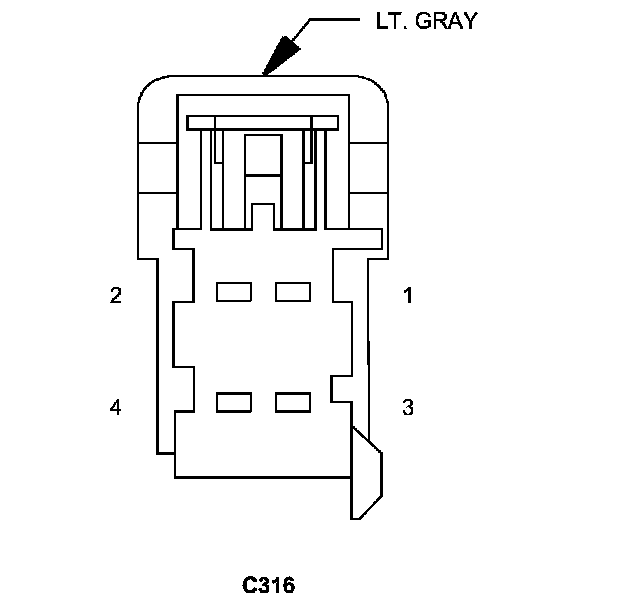

C316 - (FRONT
SEAT BACK
JUMPER SIDE) 4 WAY
