C326 (DVD) (Audio/Video Jumper Side) 24 Way
C326 (DVD) (Audio/Video Jumper Side) 24 Way

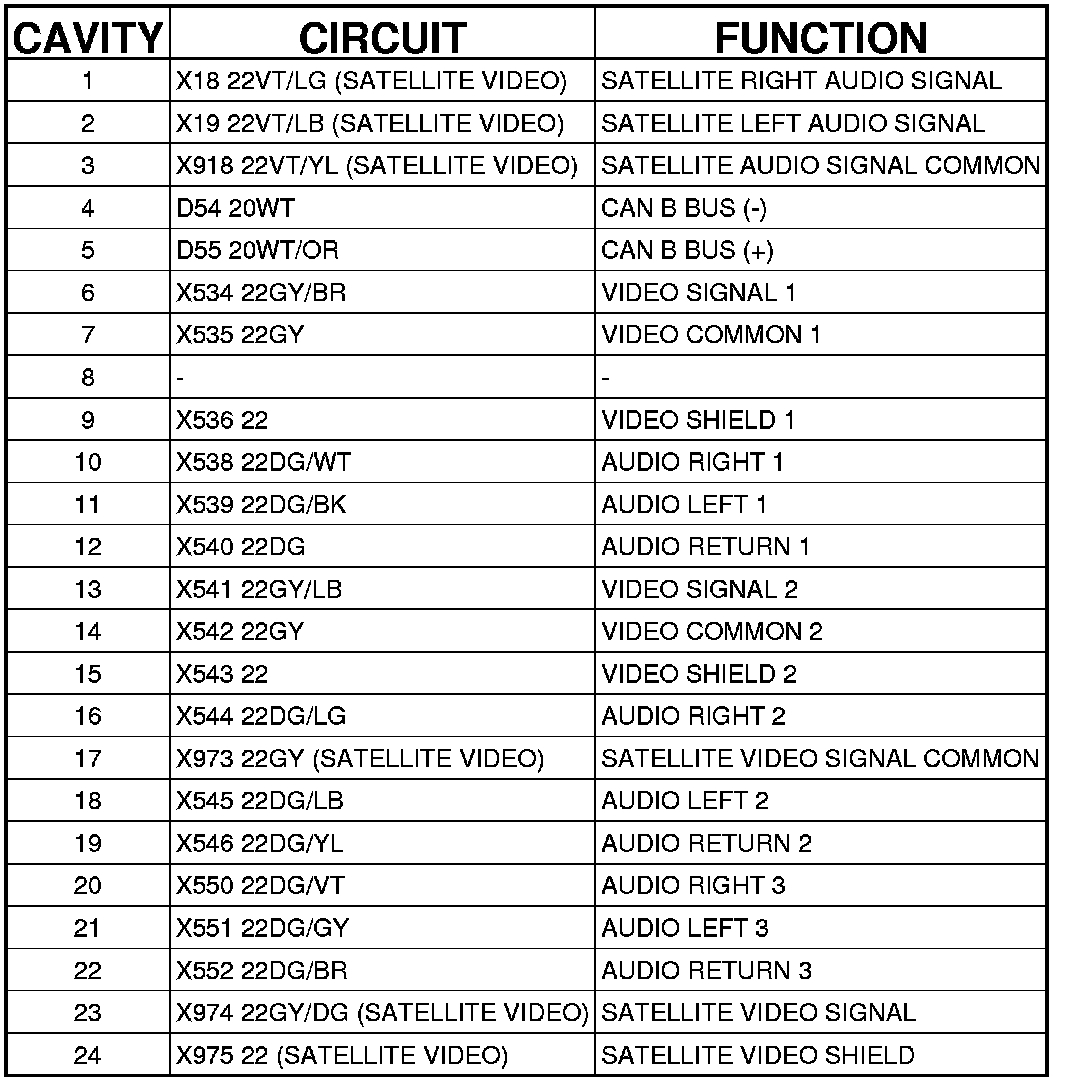

Connector (DVD) - (AUDIO/VIDEO JUMPER SIDE) 24 WAY

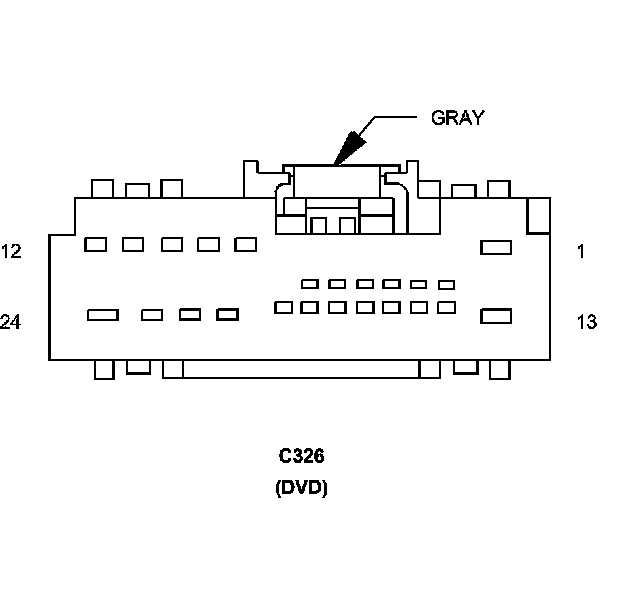

C326 (DVD) - (AUDIO/VIDEO JUMPER SIDE) 24 WAY
