C326 (DVD) (Console Side) 24 Way

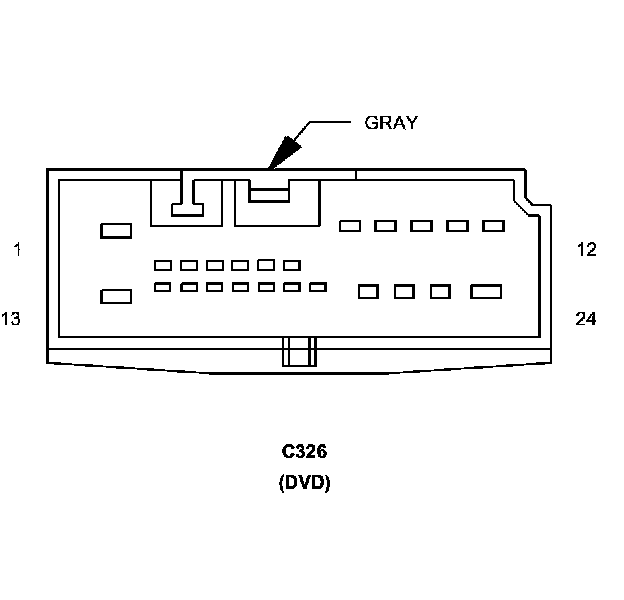

Connector (DVD) - (CONSOLE SIDE) 24 WAY

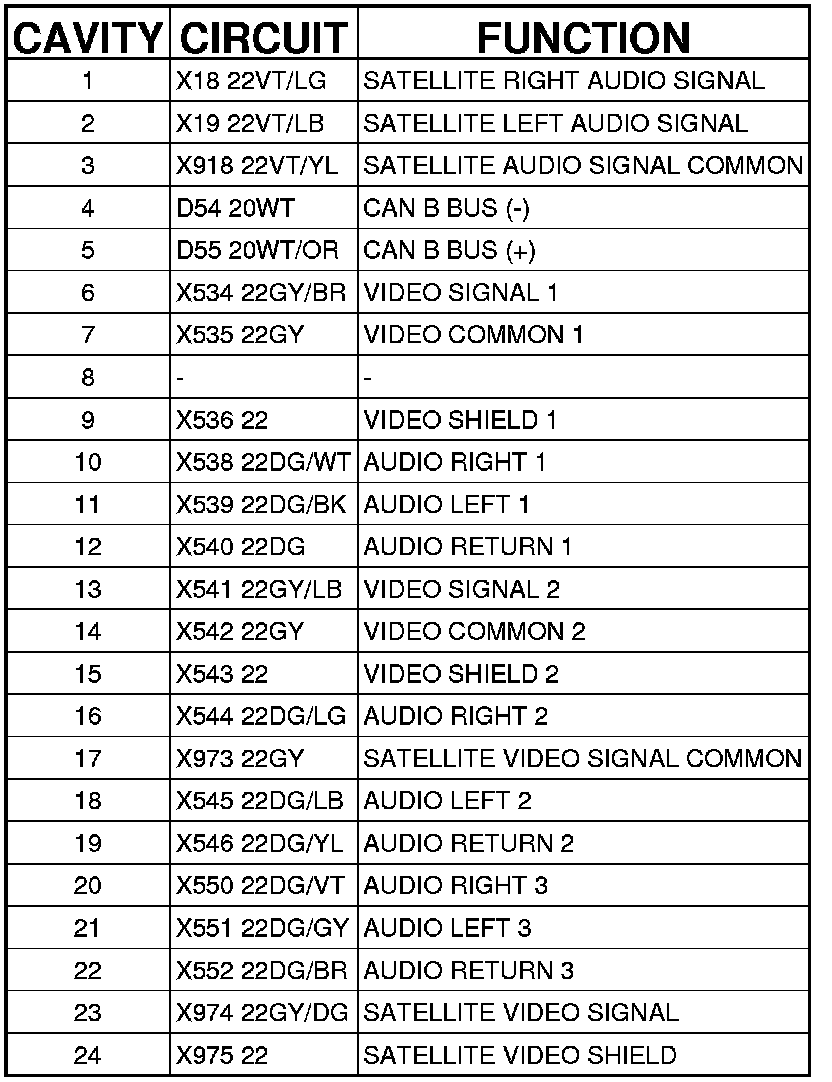

C326 (DVD) - (CONSOLE SIDE) 24 WAY
