Power Seat Motor
>>
Driver Seat Horizontal Adjuster Motor (Front Seat) 4 Way
Driver Seat Horizontal Adjuster Motor (Front Seat) 4 Way

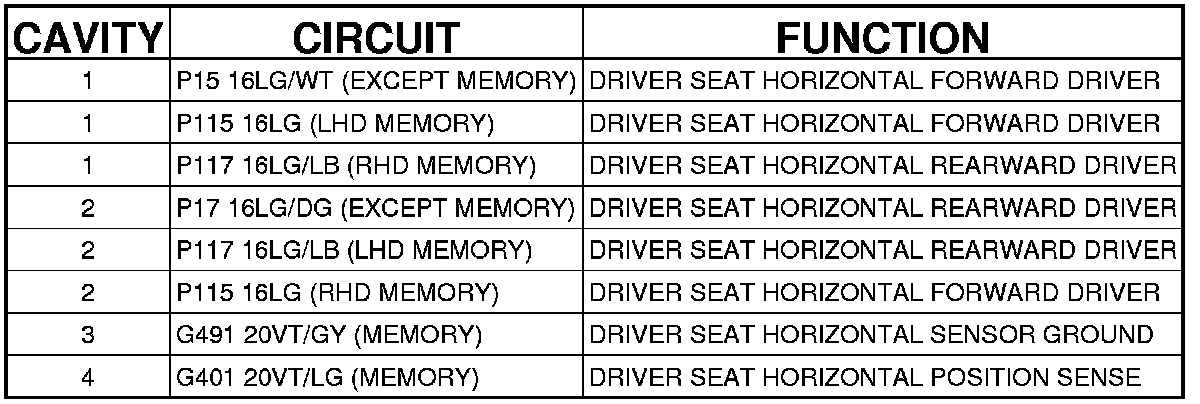

Connector - (FRONT SEAT) 4 WAY

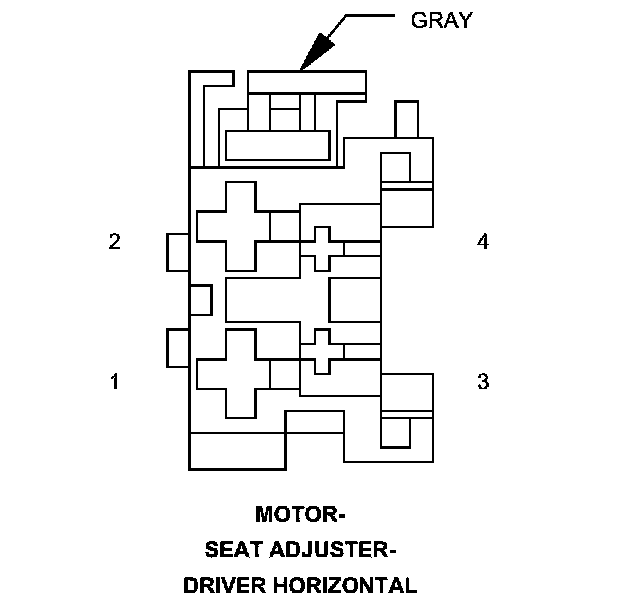

MOTOR-SEAT ADJUSTER-DRIVER HORIZONTAL - (FRONT SEAT) 4 WAY
