Seat Temperature Element
>>
Left Rear Seat Back Heater (Rear Seat Jumper) 2 Way

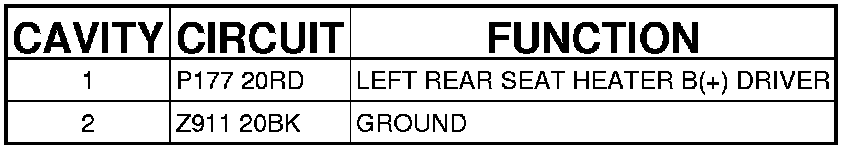

Left Rear Seat Back Heater (Rear Seat Jumper) 2 Way

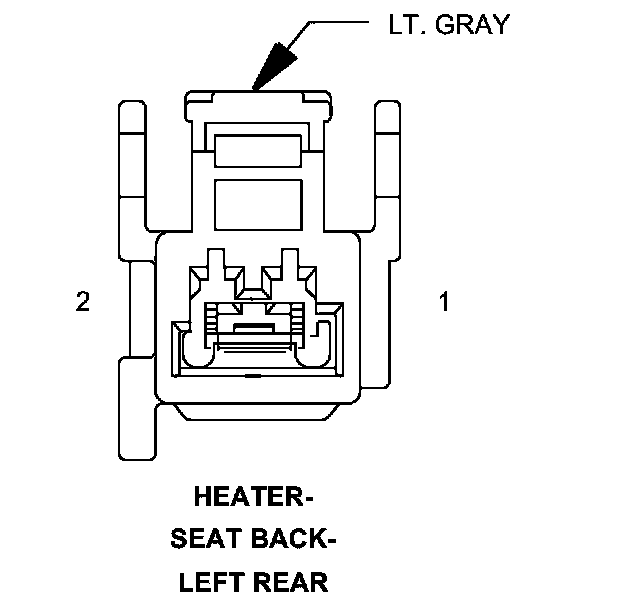

Connector - (REAR SEAT JUMPER) 2 WAY
HEATER-
SEAT BACK
-LEFT REAR - (REAR SEAT JUMPER) 2 WAY
