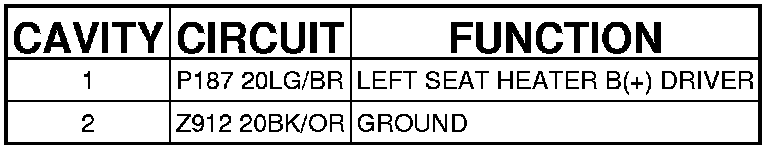

Left Seat Back Heater (Front Seat Back Jumper) 2 Way
Left Seat Back Heater (Front Seat Back Jumper) 2 Way

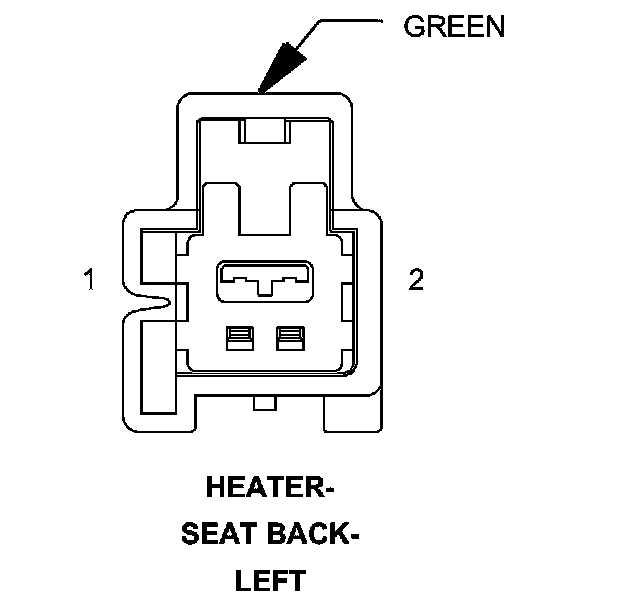

Connector - (FRONT
SEAT BACK
JUMPER) 2 WAY
HEATER-
SEAT BACK
-LEFT - (FRONT SEAT BACK JUMPER) 2 WAY
