Left Seat Cushion Heater (Front Seat) 2 Way
Left Seat Cushion Heater (Front Seat) 2 Way

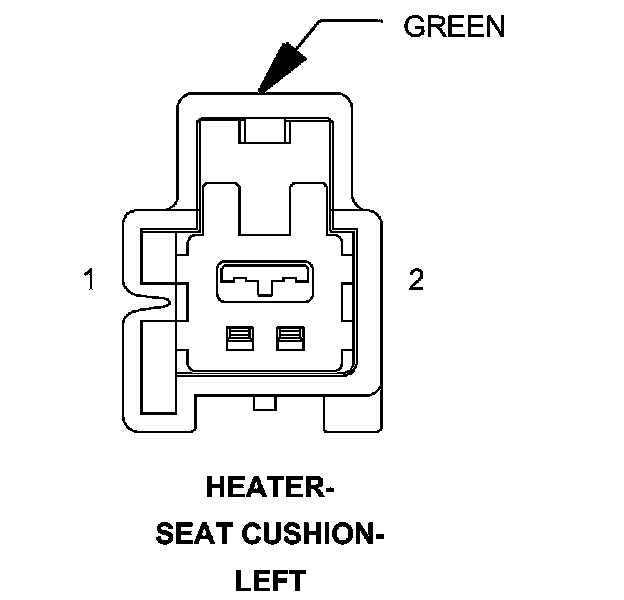

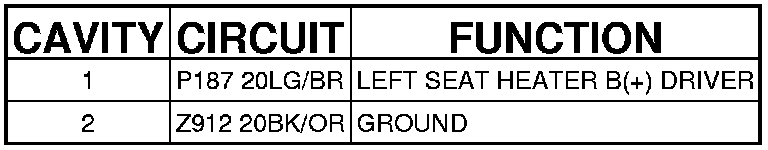

Connector - (FRONT SEAT) 2 WAY
HEATER-
SEAT CUSHION
-LEFT - (FRONT SEAT) 2 WAY
