Seat Temperature Element
>>
Right Seat Cushion Heater (Front Seat) 2 Way
Right Seat Cushion Heater (Front Seat) 2 Way

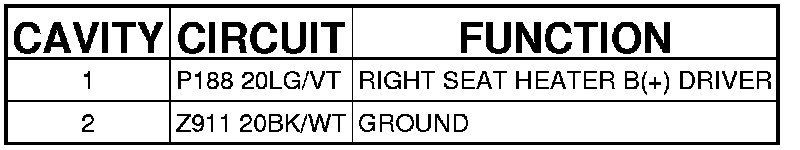

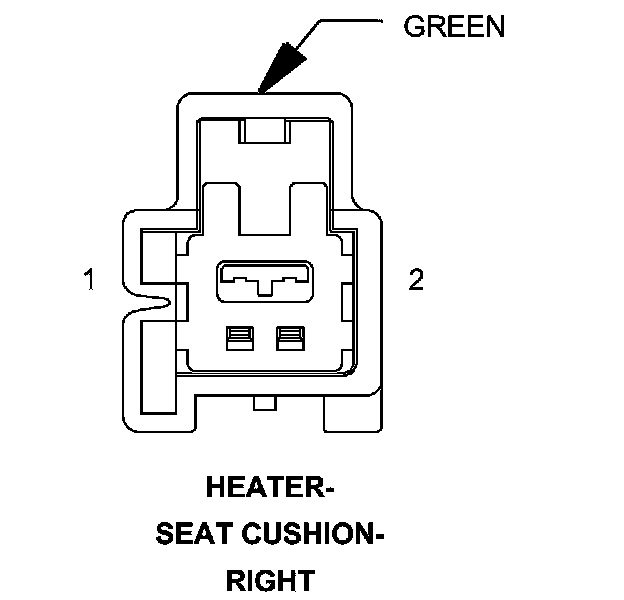

Connector - (FRONT SEAT) 2 WAY
HEATER-
SEAT CUSHION
-RIGHT - (FRONT SEAT) 2 WAY
