Left Front Door Speaker (Front Door) 3 Way
Left Front Door Speaker (Front Door) 3 Way

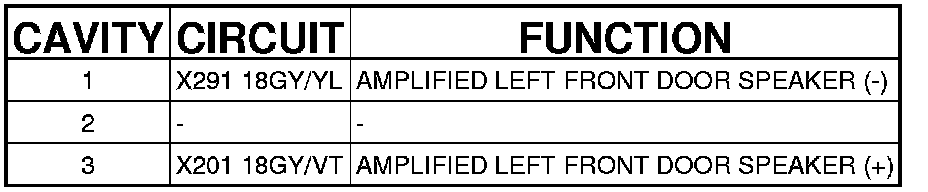

Connector - (FRONT DOOR) 3 WAY

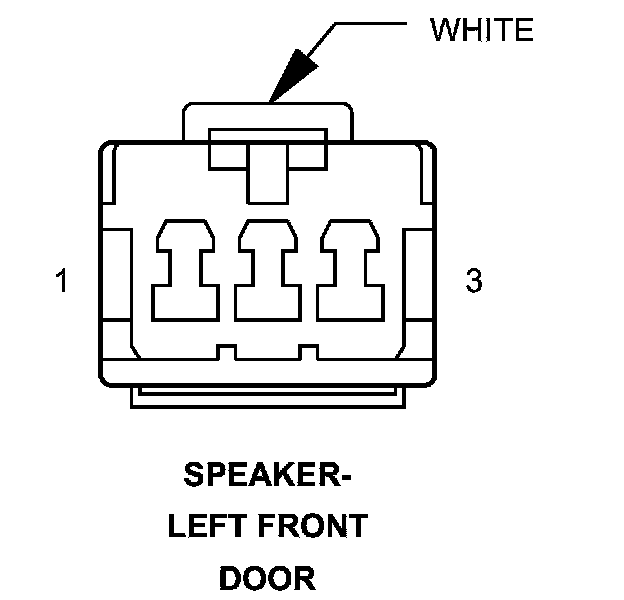

SPEAKER-LEFT FRONT DOOR - (FRONT DOOR) 3 WAY
