Spot Lamp
>>
Left Spot Lamp (Police) (Headliner) 2 Way
Left Spot Lamp (Police) (Headliner) 2 Way

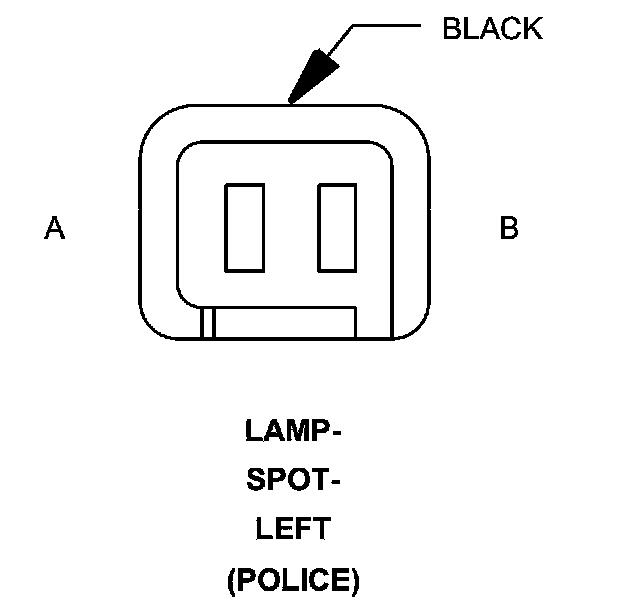

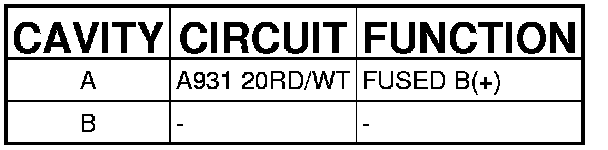

Connector (POLICE) - (HEADLINER) 2 WAY
LAMP-SPOT-LEFT (POLICE) - (HEADLINER) 2 WAY
