Spot Lamp
>>

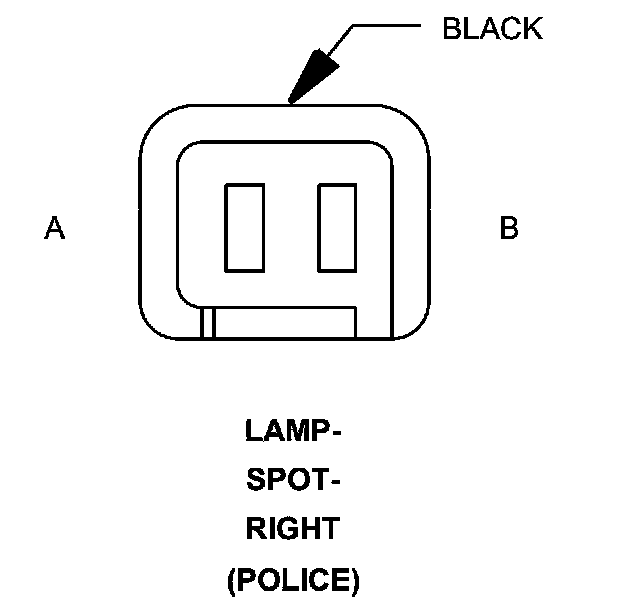

Right Spot Lamp (Police) (Headliner) 2 Way
Right Spot Lamp (Police) (Headliner) 2 Way

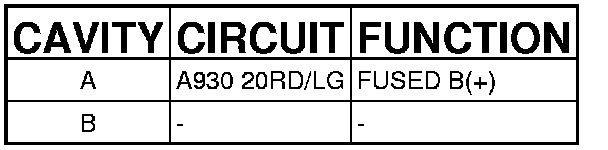

Connector (POLICE) - (HEADLINER) 2 WAY
LAMP-SPOT-RIGHT (POLICE) - (HEADLINER) 2 WAY
