Transfer Case Motor C1 (AWD) (Transfer Case Jumper) 2 Way

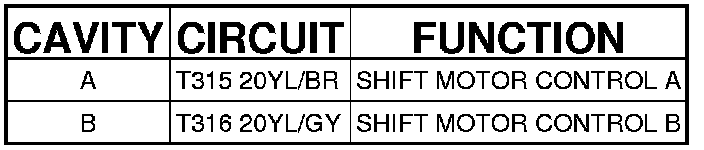

Connector C1 (AWD) - (TRANSFER CASE JUMPER) 2 WAY

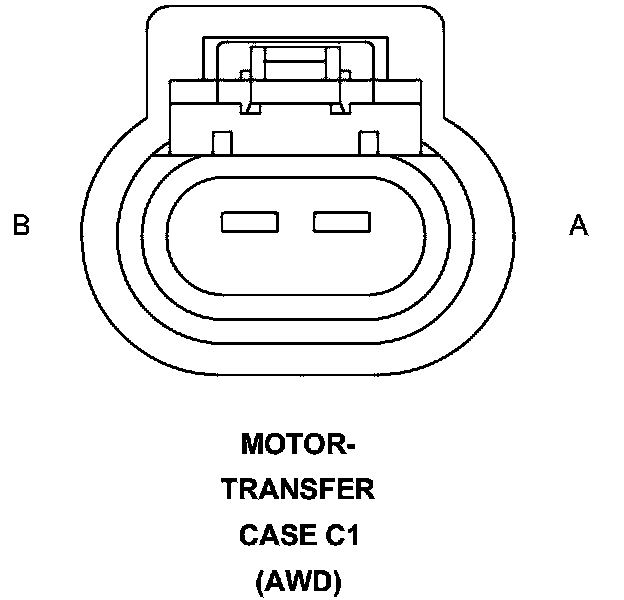

MOTOR-TRANSFER CASE (AWD) - (TRANSFER CASE JUMPER) 2 WAY
