Air Outlet - Installation

AIR OUTLET - CHRYSLER






NOTE: LHD model shown. RHD model similar.

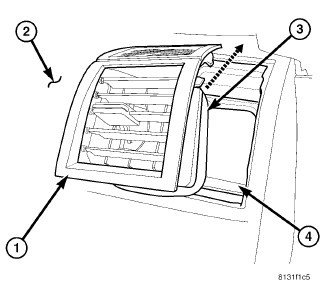

1. Position the outboard air outlet (1) into its location on the instrument panel (2).

NOTE: Make sure that the air outlet is properly aligned to the duct within the instrument panel opening and that the foam seal on the outlet is properly installed.

2. Align the air outlet foam seal (3) with the duct in the instrument panel (4) and slide the top portion of the air outlet into the instrument panel top pad. Gently push on the sides of the air outlet until the snap clip retainers on the outlet are fully engaged to the instrument panel.
