Air Outlet - Removal

AIR OUTLET - CHRYSLER

NOTE: Only the outboard instrument panel air outlets can be serviced separately. For service of the other instrument panel air outlets Instrument Cluster Bezel - Removal .






NOTE: LHD model shown. RHD model similar.

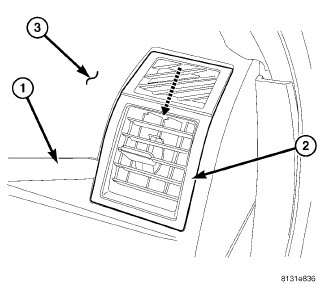

1. Using Trim Stick C-4755 (1) or equivalent, gently pry on both sides of the outboard instrument panel air outlet(s) (2), near the bottom of the outlet, until the air outlet snap clip retainers are released from the face of the instrument panel (3).
2. Gently slide the air outlet(s) rearward to release the top of the outlet (demister outlet) from the instrument panel.
