Right Rear Footwell Lamp (Premium) (Rear Door) 2 Way
Right Rear Footwell Lamp (Premium) (Rear Door) 2 Way

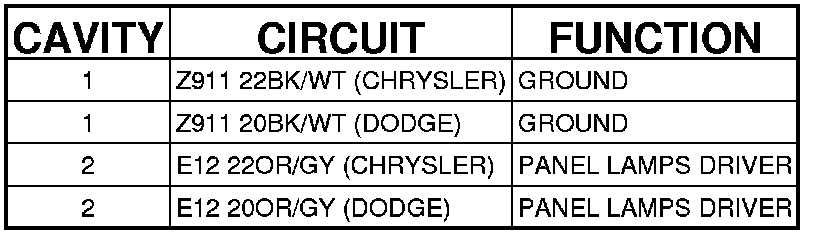

Connector (PREMIUM) - (REAR DOOR) 2 WAY

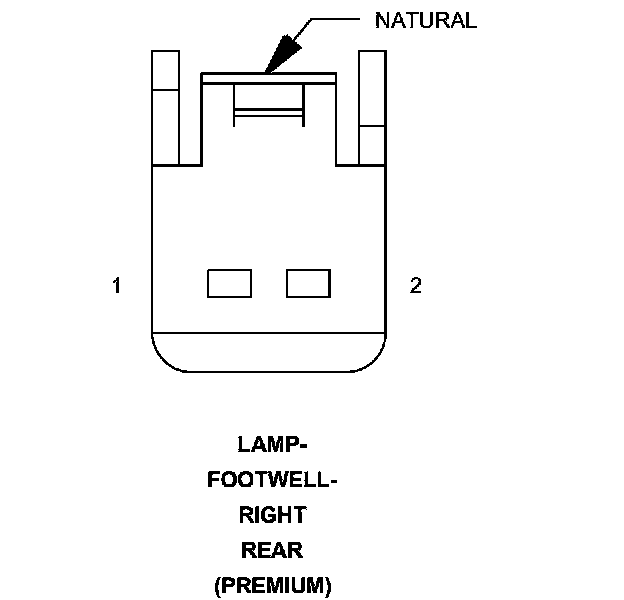

LAMP-FOOTWELL-RIGHT REAR (PREMIUM) - (REAR DOOR) 2 WAY
