Roll Top

REMOVAL

WARNING: Before servicing the steering column the airbag system must be disarmed. Refer to electrical restraint system for service procedures. Failure to do so may result in accidental deployment of the airbag and possible personal injury or death.

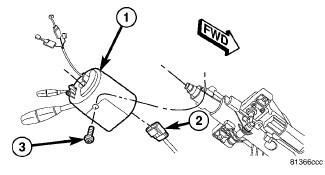

1. Access and remove the steering column control module (SCCM) (1) from the column Steering Column Control Module - Removal





2. Remove the steering column opening cover Steering Column Opening Cover - Removal

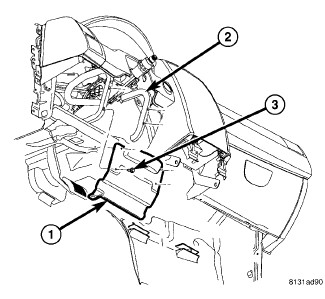

3. Remove the steering column opening reinforcement (1).
4. Remove the cluster bezel. Instrument Cluster Bezel - Removal





5. Manual tilt and telescoping columns - Unsnap and move the adjustment handle locking tab (3) forward as shown unlatching the handle (2) from the column.





6. Remove the three shroud mounting screws (2).





7. Remove the roll top shroud (1) along with manual tilt/telescope handle (3) (if equipped).
