Seat Belt Tensioner
>>
Passenger Seat Belt Tensioner (Body) 2 Way
Passenger Seat Belt Tensioner (Body) 2 Way

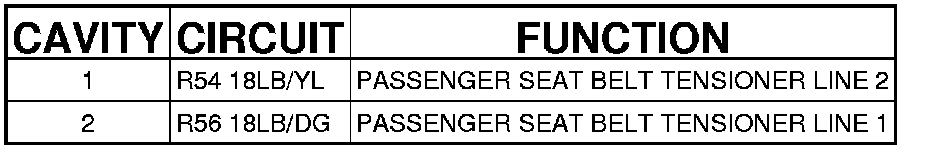

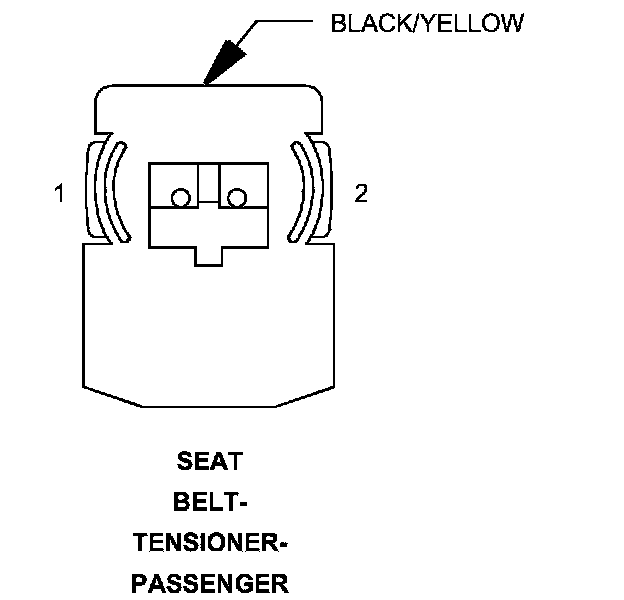

Connector - (BODY) 2 WAY
SEAT BELT
-TENSIONER-PASSENGER - (BODY) 2 WAY
