Instrument Cluster / Carrier: Locations

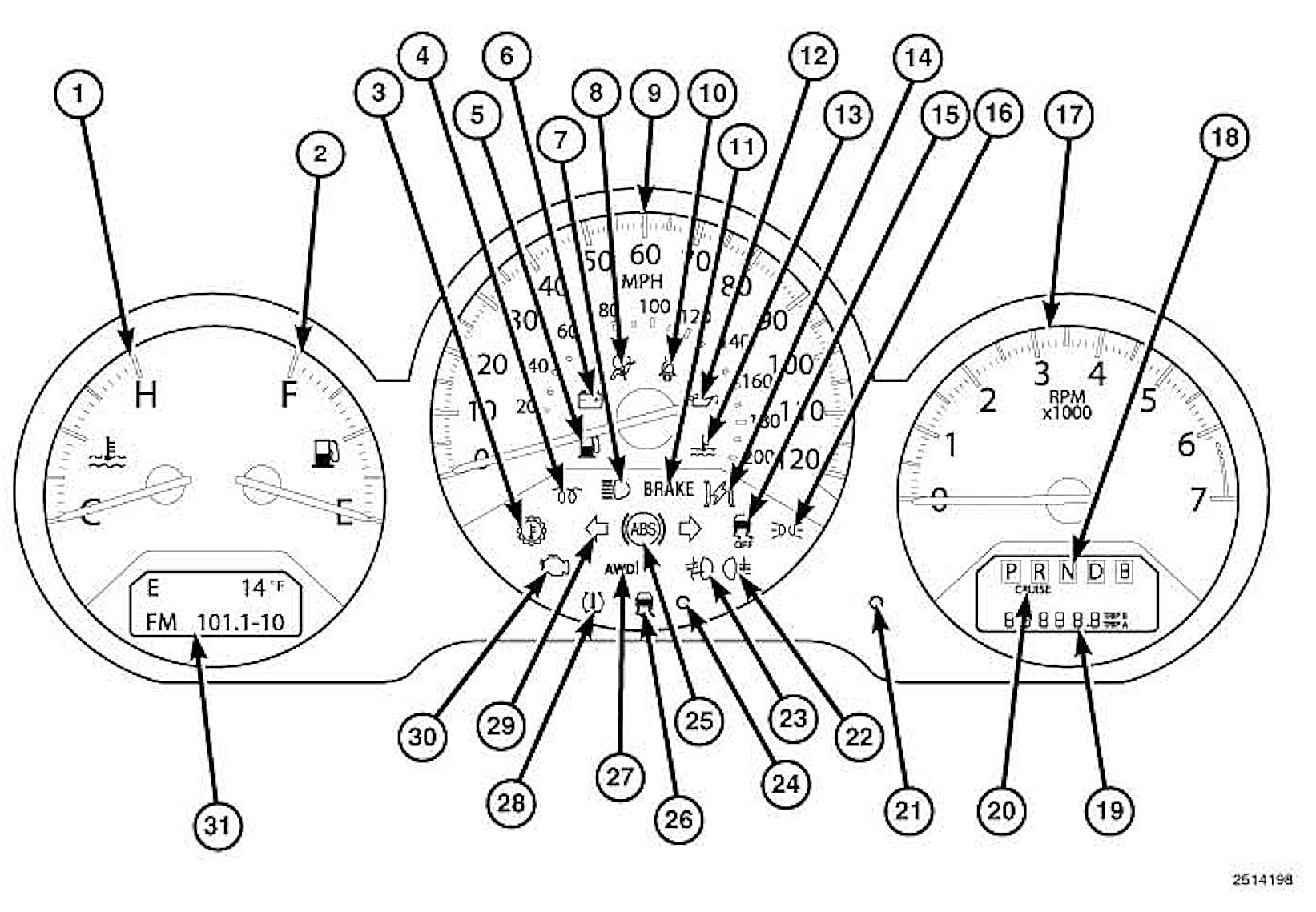

Instrument Cluster:

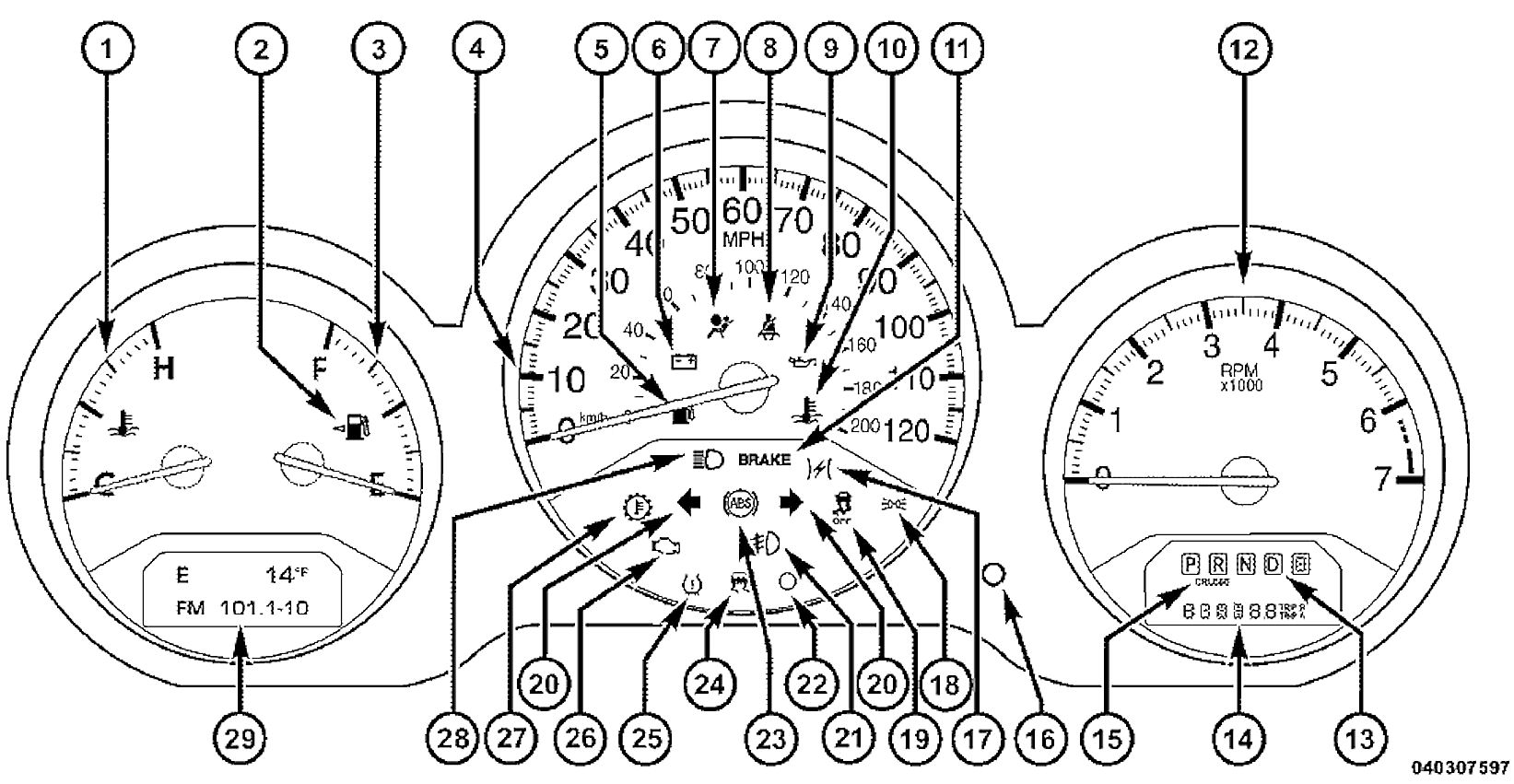

Instrument Cluster:

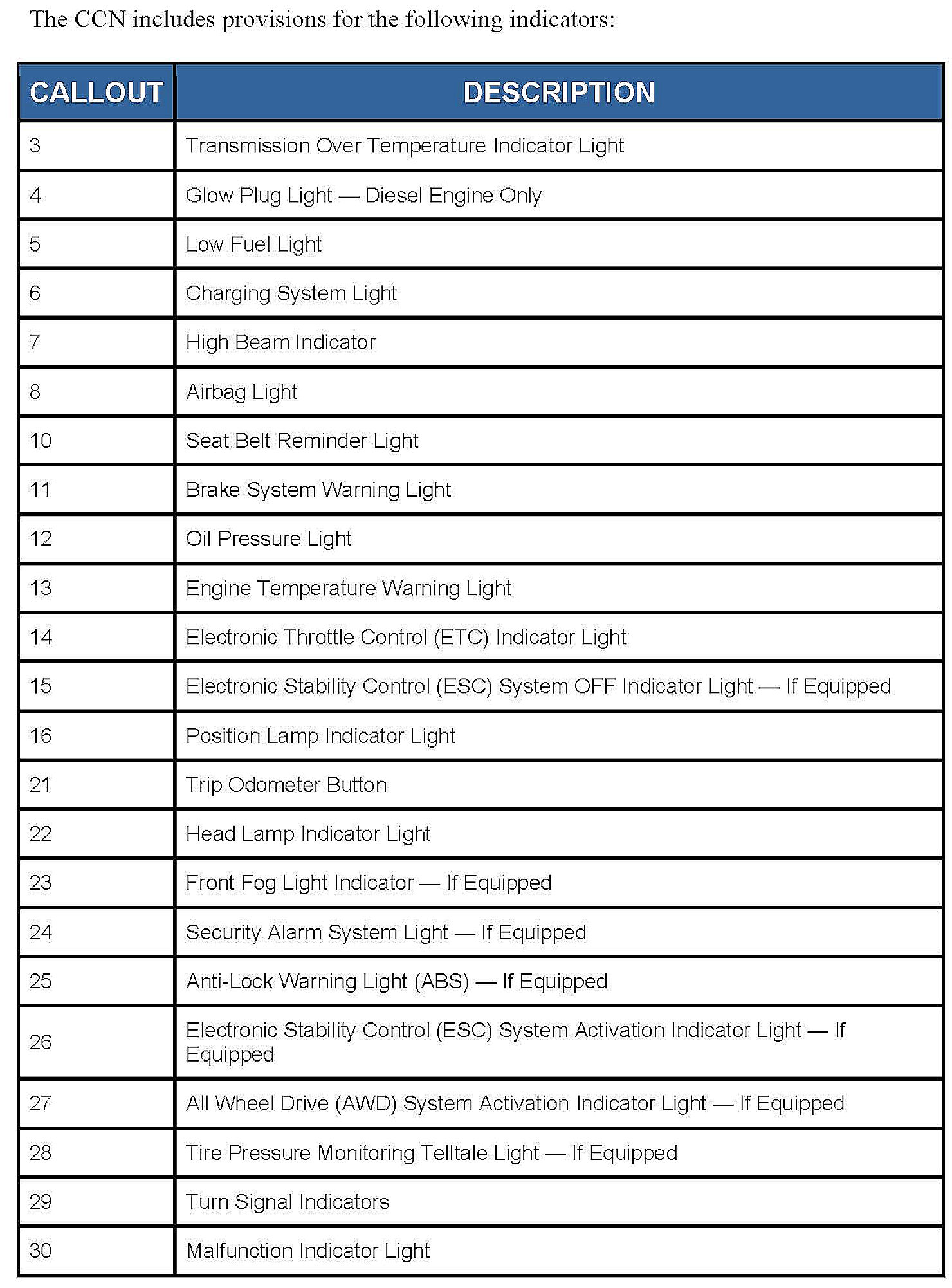

Description 1:

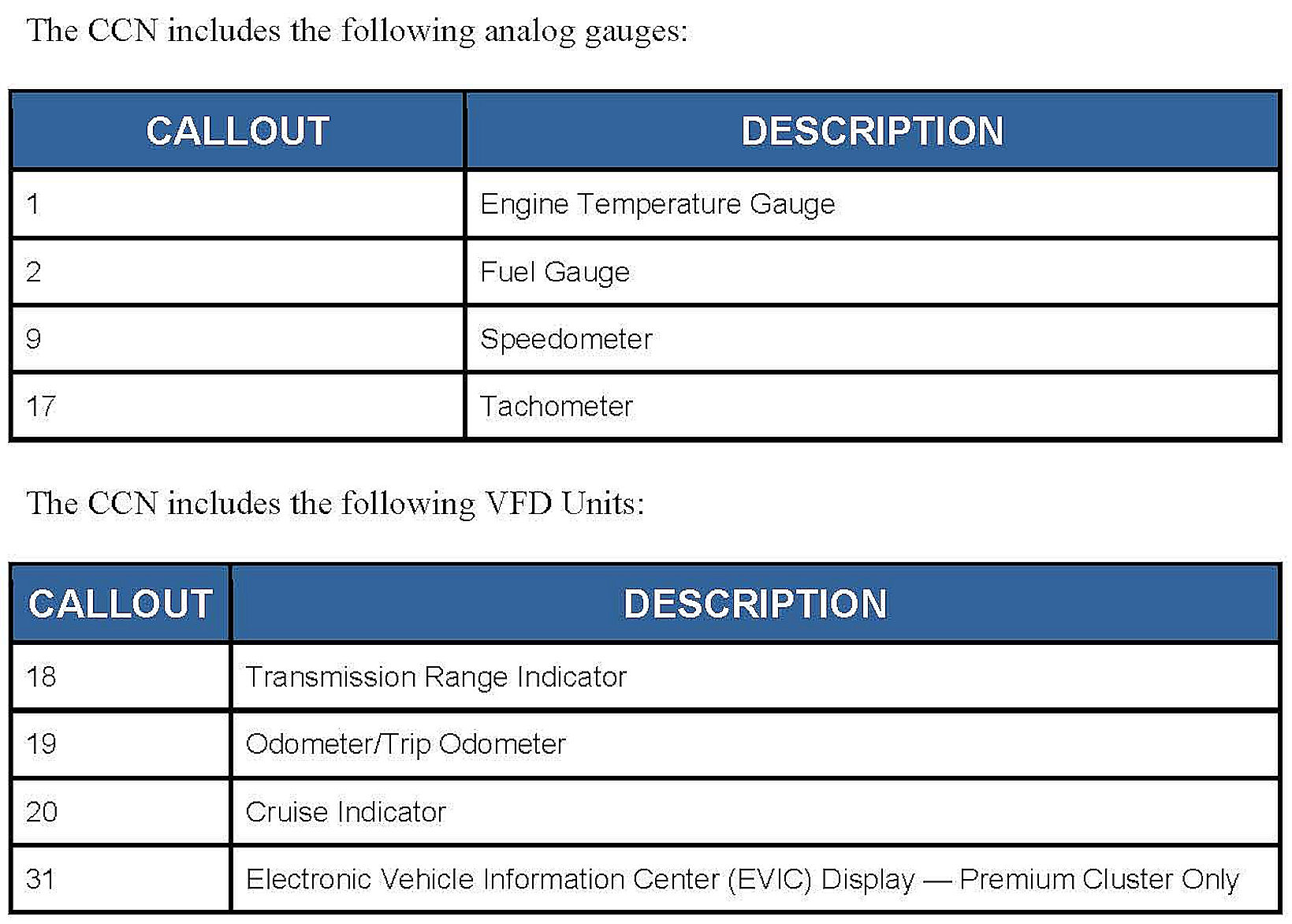

Description 2:
