Sunroof Drain Channel - Installation

INSTALLATION





1. Place channel spring (3) over channel axle (2).

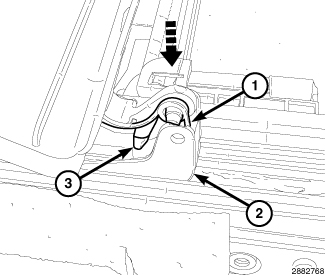

2. Carefully snap the channel (1) into the support (2) by pushing down on the channel while holding the spring in place.

NOTE: Make sure the stop tab (3) is free to move within the support (2).

3. Install the front glass panel. Front Panel
