Diesel Data
: Automotive Repair
Home
>>
Daewoo
>>
1999
>>
Nubira CDX Hatchback L4-2.0L DOHC D-TEC MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
System Diagram
>>

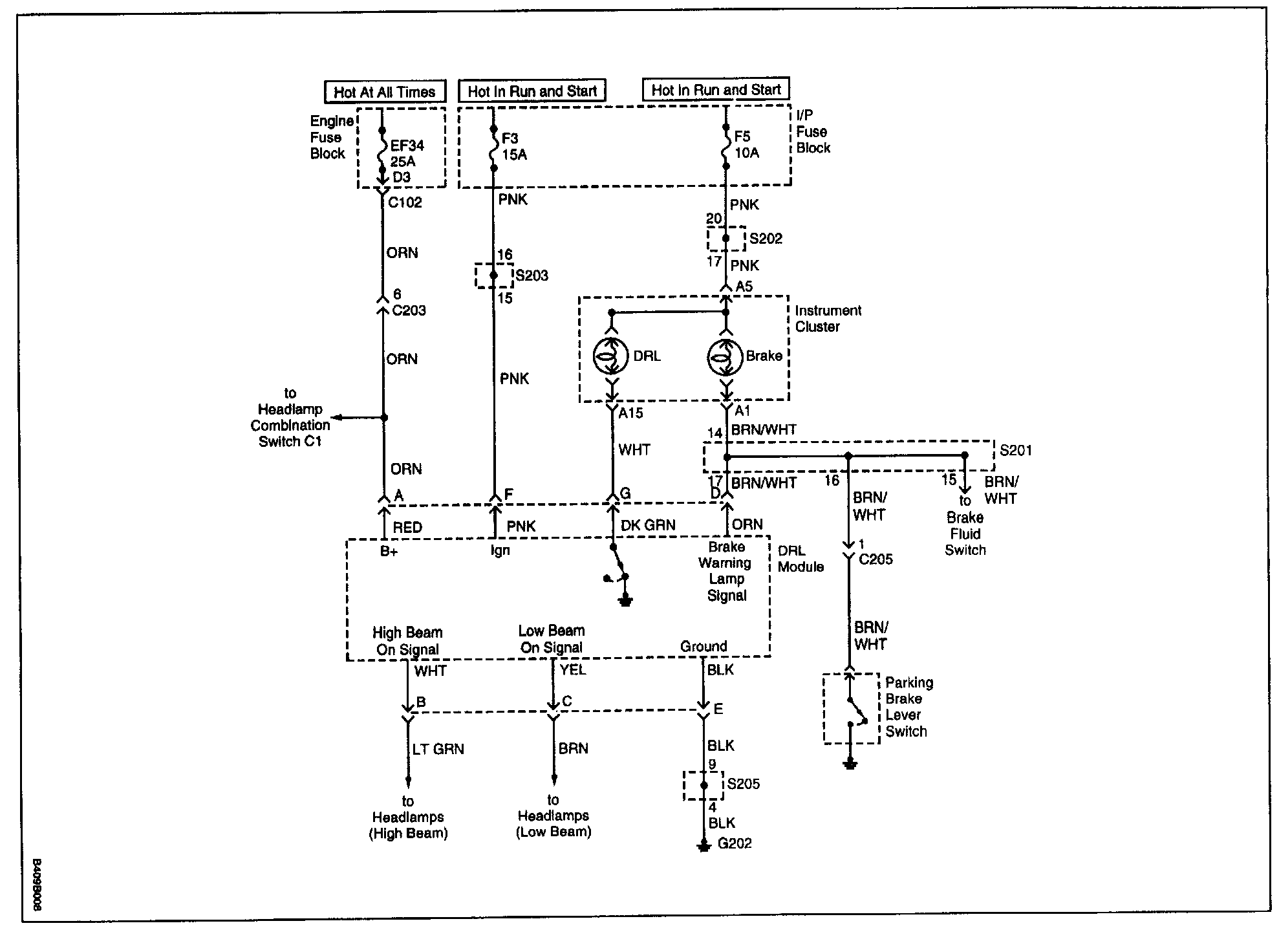

Daytime Running Lamps Circuit
Daytime Running Lamps Circuit
