Diesel Data
: Automotive Repair
Home
>>
Dodge
>>
1991
>>
Shadow Convertible L4-153 2.5L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
System Diagram
>>
Rear Lighting
>>
Except Convertible
Except Convertible

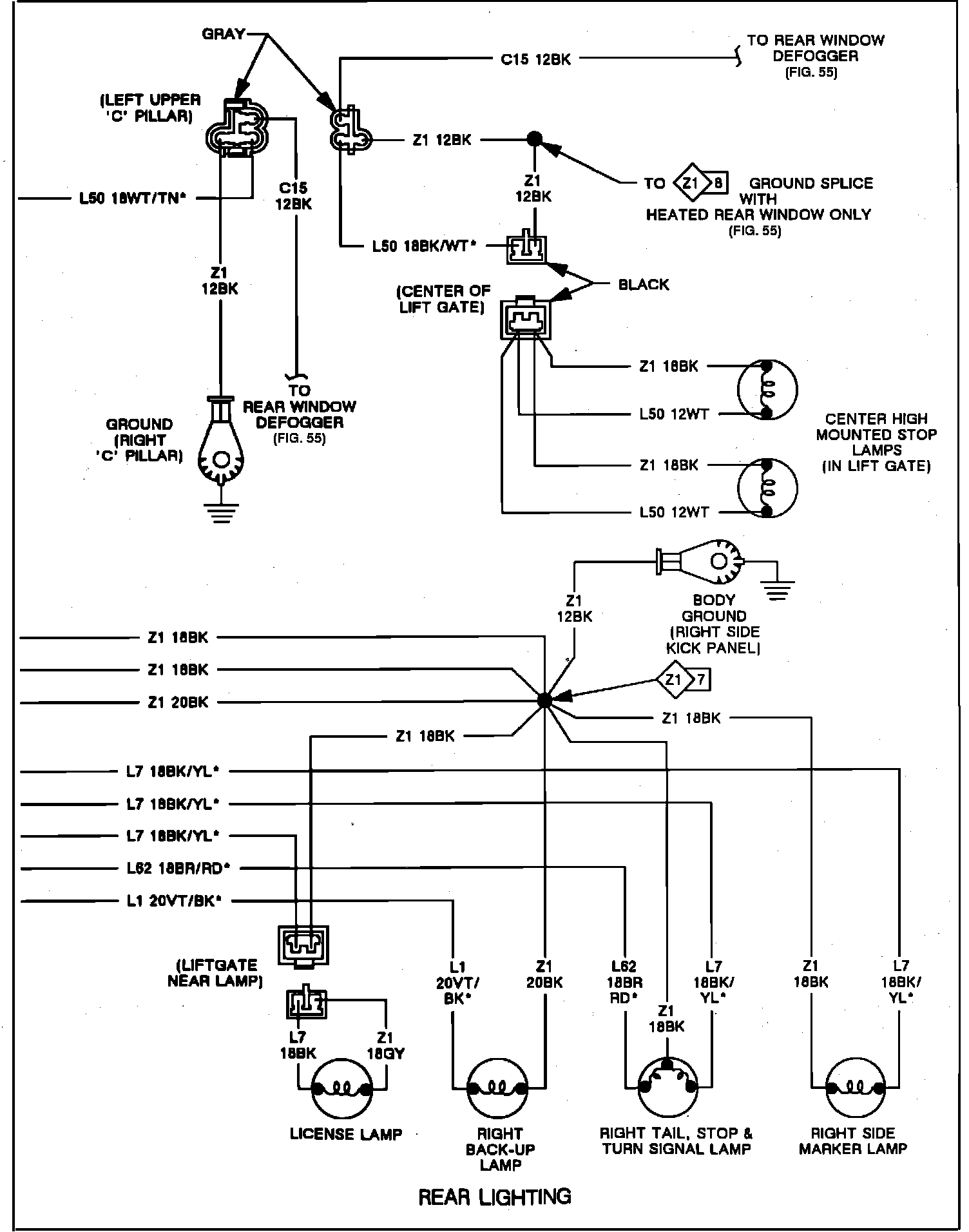

Rear Lighting:
Rear Lighting:
