Instrument Cluster / Carrier: Locations

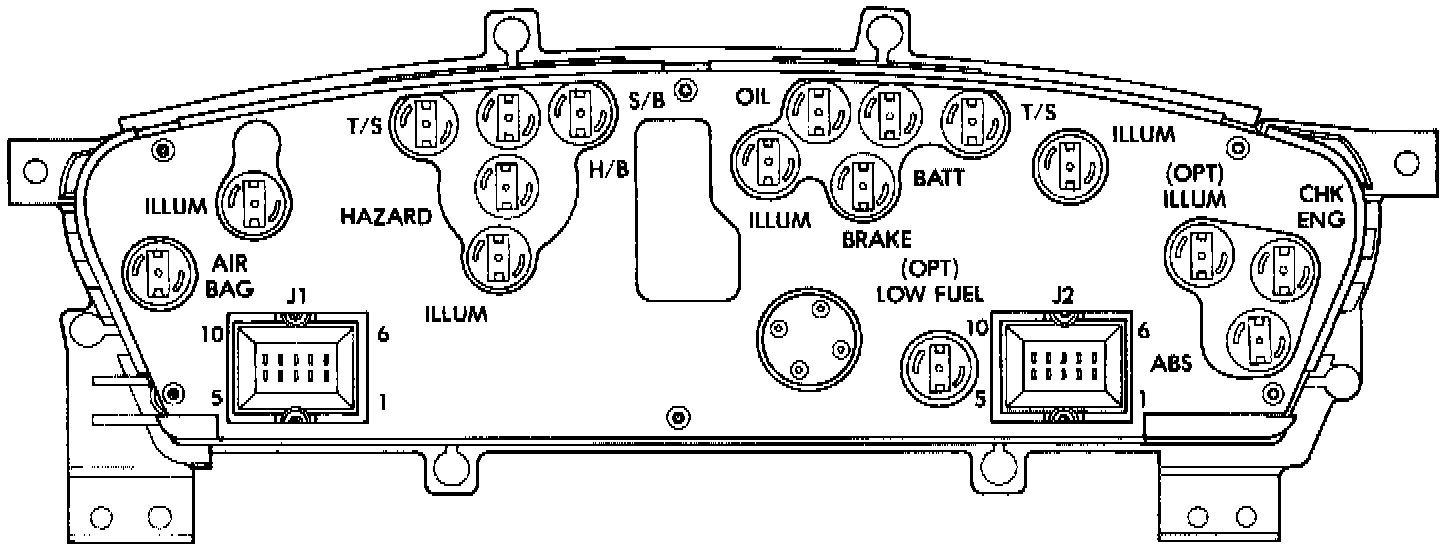

Instrument Cluster Illumination lamps:

The Instrument Cluster illumination Lamps location are shown. The cluster is viewed from the rear. To replace lamp(s), the cluster must be removed.
