Axle Shaft: Application and ID

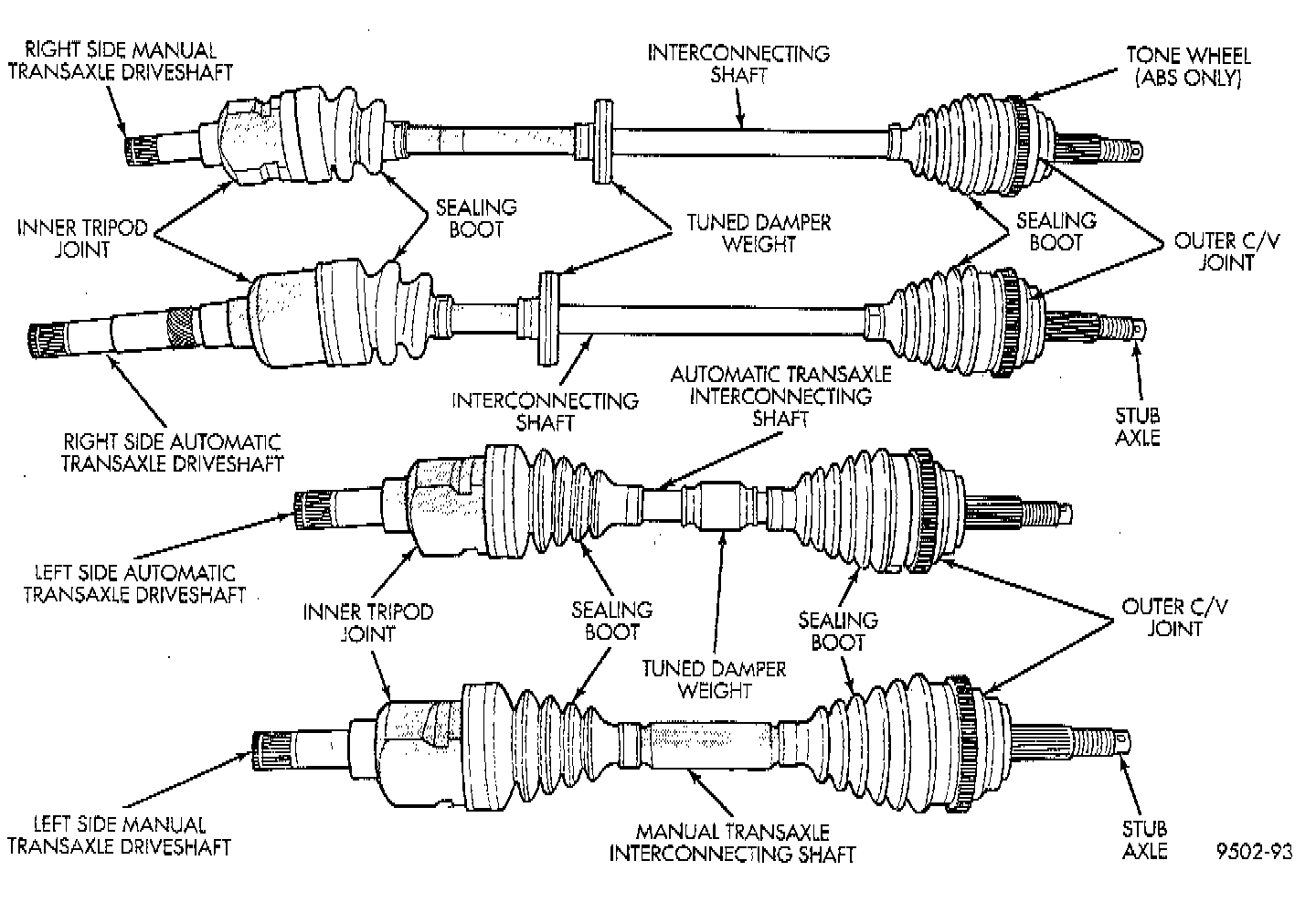

Driveshafts and driveshaft inner and outer boots can be identified as shown. Driveshaft boot location on the driveshaft assemblies is determined by the number of convolutions on the driveshaft boot. Refer to illustration for the correct location of the sealing boots.
