Speaker Replacement - Front Door

FRONT DOOR

REMOVAL
1. Disconnect and isolate the battery negative cable.
2. Remove front door trim panel.

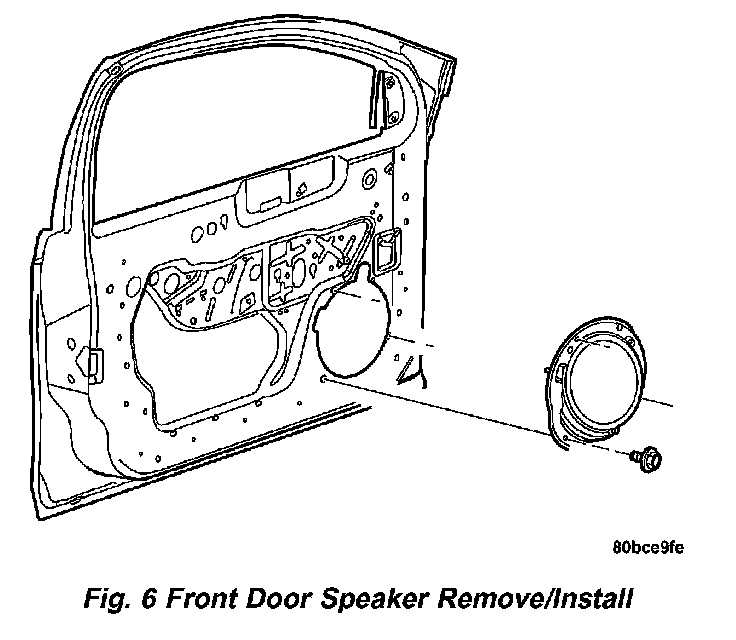

Fig.6 Front Door Speaker Remove/Install:

3. Remove speaker retaining screws.
4. Remove speaker assembly and disconnect wire connector from rear of speaker.

INSTALLATION
1. Connect wire connector to speaker and install speaker to vehicle.
2. Install speaker retaining screws.
3. Install front door trim panel.
4. Connect battery negative cable.
