Installation

6.1L

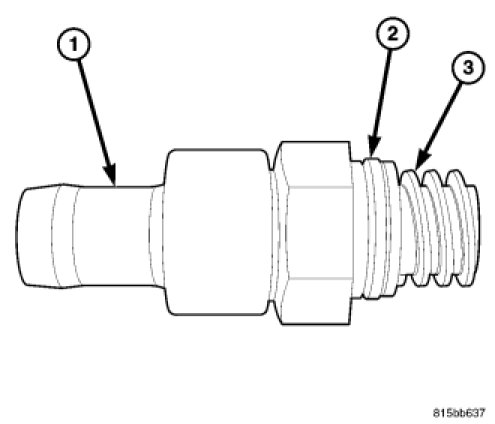

1. Check condition of PCV valve O-ring (2).

2. Check condition of PCV valve threads (3). Clean if necessary.

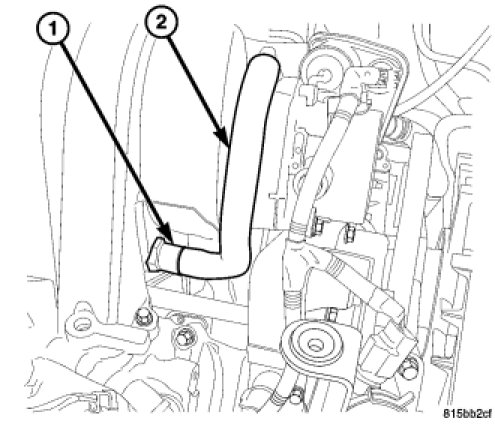

The PCV valve (1) is threaded into the right-front corner of the intake manifold.

3. Install valve (1) into intake manifold.

4. Install rubber hose (2) to valve.
